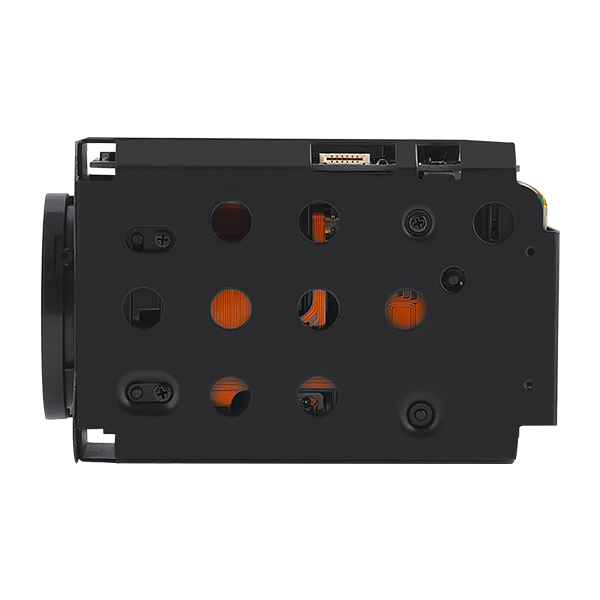

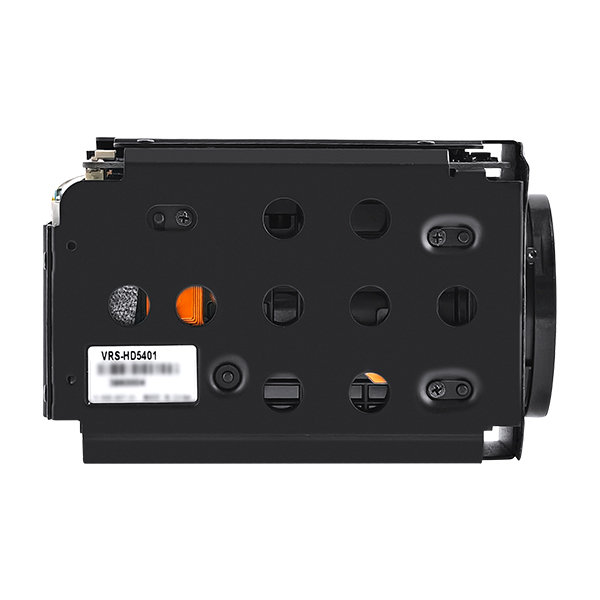

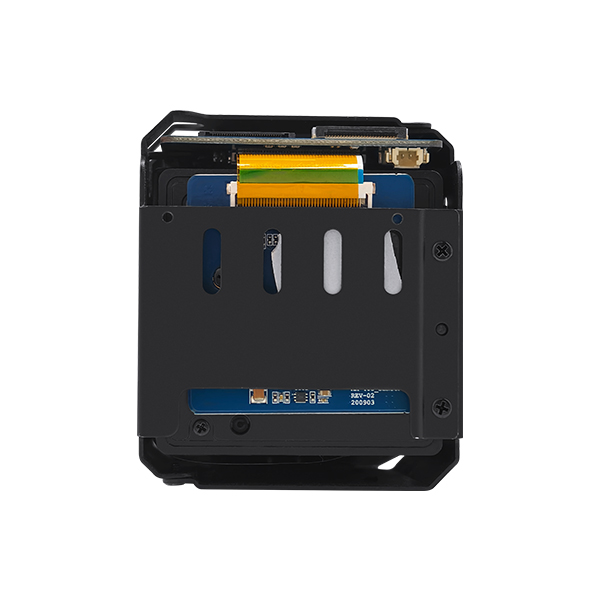

VRS-HD5401 2MP Lvds Output 40X Zoom Camera Module

VRS-HD5401 2MP Lvds Output 40X Zoom Camera Module

VRS-HD5401 Feature: • Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.12MP) • Resolutions: Digital:1080p/60(50)fps,1080p/30(25)fps,720p/60(50)fps,720p/30(25)fps Analog:700TVL • Video Output: Digital output: LVDS,EX-SDI • Lens: f = 4325mm - 170mm, F1.6 - F4.95 • Zoom: 40x Optical Zoom, 32x Digital Zoom • Other functions: Day & Night (ICR), Real-time True WDR, Digital Image Stabilization, High Light Compensation • Power supply: 9V to 15V DC • Size: 54.0 x 64.0 x 101.0mm • Weight: approx. 355g

在线询价
  • 产品详情

View

  The VRS-HD5401 adopts a 40x ultra-high magnification optical zoom system. Breaking the limits of distance, it captures target details hundreds of meters away with zero image quality loss. It delivers a smooth and precise zoom experience for long-range facial recognition in security monitoring, micro recording of wild ecology, and real-time tracking in large venues. Equipped with advanced digital image stabilization algorithms, it effectively offsets image shake caused by handheld or airborne vibration even at the maximum telephoto magnification. Free from blurriness and ghosting, it ensures every frame is realistic, clear and ultra-stable.

Features

  • 1/2.8" 2MP Sony CMOS sensor • 1080p 60fps/30fps,  720p 60fps/30fps • 40x Optical Zoom(4.25mm ~ 170mm) & 32x Digital Zoom • Day & Night (ICR) • Wide Dynamic Range • Digital Noise Reduction (2D+3D) • Privacy Mask Function • Digital Image Stabilization • High Light Compensation • Intelligent Motion Detection • Defog Function • Supports VISCA, Pelco-D/P Protocol • Video Out : LVDS, CVBS

Product Specs

Volers VRS-HD5401 Product Specs

Aperture Ratio F1.6 (wide) ~ F4.95 (tele)
Angle of View (D, H, V) Wide 73.80° 66.35° 39.98°
Tele 2.16° 1.90° 1.11°
Function
AF Mode Auto / One Push / Manual
Min. Distance 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh One Push / 1 ~ 10Day
Digital Zoom Off / MAX x2 ~ x32
Exposure Auto / Iris.P / Shut.P / Manual
Gain Control (AGC) 0 ~ 10 steps
Shutter Speed 1/1 ~ 1/30,000 sec
Iris Close ~ F1.6
Digital Slow Shutter (DSS) Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only)
Flickerless Off / On / Auto
Brightness 0 ~ 14 steps
Back Light Off / BLC / HLC / WDR
Day&Night Auto / Day / Night / Ext-in
White Balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
DNR 2D/3D, 2D+3D
Mirror Off / H / V / H&V
Sharpness 0 ~ 15 steps
DWDR Off / Manual / Auto
Defog Off / On(Auto / Manual)
Privacy Mask Off / On (8 points)
Motion Detection Off / On (4 points)
Defect Detection Off / On
System NTSC / PAL
Communication Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P
Power Source 9V to 15V DC
Power Consumption Max 530mA
Operating Temperature -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension 54(W) x 64(H) x 101(D)
Weight 355g
