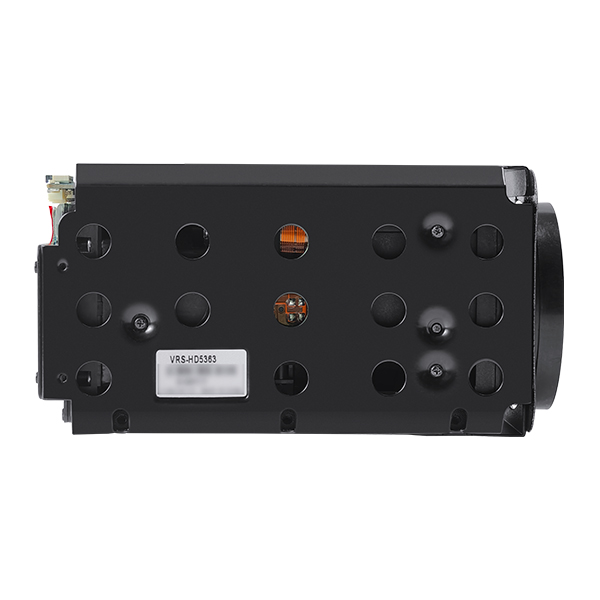

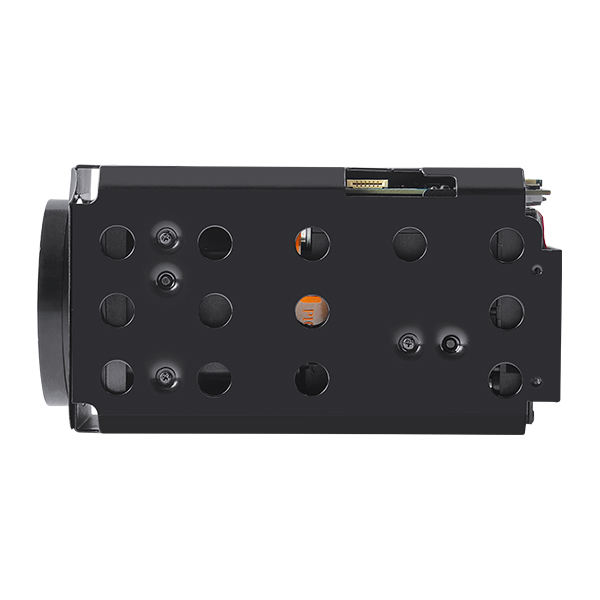

VRS-HD5363 36X Autofocus Zoom EX-SDI Block Camera

VRS-HD5363 36X Autofocus Zoom EX-SDI Block Camera

VRS-HD5363 Feature: • Sensor(Effective pixels): 1/2'' Sony CMOS(approx. 2.12MP) • Resolutions: Digital:1080p/60(50)fps,1080i60(50)fps,1080p/30(25)fps,720p/60(50)fps,720p/30(25)fps Analog:700TVL • Video Output: Digital output: LVDS,EX-SDI • Lens: f = 6.0mm - 216.0mm, F1.5 - F4.8 • Zoom: 36x Optical Zoom, 32x Digital Zoom • Min. Illumination: Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux • Other functions: Day & Night (ICR), Real-time True WDR, Digital Noise Reduction(2D+3D), Privacy Mask Function • Power supply: 9V to 15V DC • Size: 55.6 x 64.0 x 124.0mm • Weight: approx. 400g

在线询价
  • 产品详情

View

  The VRS-HD5363 is  equipped  with  up  to  36x  optical  zoom  and  supports  Full  HD resolution.It provides excellent image quality whether during the day or night,thanks to the built-in  ICR (Day to Night  Conversion)technology,WDR  (Wide  Dynamic  Range)and  DNR  (Digital  Noise  Reduction,2D+3D)functions. In addition,it also has a privacy mask function to protect the privacy of the subject when needed.   In terms of digital output,the camera supports LVDS (Low Voltage Differential Signaling)and EX-SDI (Extended Serial Digital Interface)formats.In terms of analog output,it supports HD-Analog(high-definition analog)and CVBS (composite video broadcast signal,for testing purposes only)formats. The VRS-HD5363 also supports OSD (on-screen display)function,allowing users to customize the settings menu according to their needs.At the same time,it also has a motion detection function that can automatically capture moving objects.To ensure the stability of the picture during shooting,the camera is also equipped with a digital image stabilizer (DIS).

Features

• 1/2" 2MP Sony CMOS sensor • 1080p 60fps/30fps,1080i 60fps, 720p 60fps/30fps • 36x Optical Zoom(6mm~216mm) & 32x Digital Zoom • F1.5(wide) ~ F4.8(tele) • Day & Night(ICR) • Wide Dynamic Range • Digital Noise Reduction(2D+3D) • Digital Image Stabilization • Privacy Mask Function • High Light Compensation • Intelligent Motion Detection • Defog Function • Supports VISCA, Pelco-D/P Protocol • Video Out : LVDS, EX-SDI,CVBS

Product Specs

Volers VRS-HD5363 Product Specs

Model VRS-HD5363
Image Sensor 1/2" Sony CMOS Sensor
Total Pixels 1,952 (H) x 1,113 (V) = 2.17M Pixels
Active pixels 1,937 (H) x 1,097 (V) = 2.12M Pixels
Scanning system Progressive Scan
Sync. System Internal
Resolution Digital : 1080p/60(50)fps, 1080i60(50)fps,1080p/30(25)fps, 720p/60(50)fps, 720p/30(25)fps Analog : 700TVL
Min. illumination Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux Color(1/30s, 77.7dB) : 0.01 lux , BW(1/30s, 77.7dB) : 0.002lux
Video Output HD : LVDS, EX-SDI Analog SD : CVBS
S/N Ratio more than 50dB (AGC off)
Lens
Lens type 36x Day & Night Zoom Lens
Zoom Ratio Optical 36x, Digital 32x Zoom
Focal Length f = 6.0mm ~ 216.0mm
Aperture Ratio F1.5 (wide) ~ F4.8 (tele)
Angle of View (D, H, V) Wide 65.56° 58.44° 34.11°
Tele 2.40° 2.10° 1.19°
Function
AF Mode Auto / One Push / Manual
Min. Distance 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh One Push / 1 ~ 10Day
Digital Zoom Off / MAX x2 ~ x32
Exposure Auto / Iris.P / Shut.P / Manual
Gain Control (AGC) 0 ~ 10 steps
Shutter Speed 1/30(25) ~ 1/60,000 sec
Iris 0 ~ 20 steps
Digital Slow Shutter (DSS) Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only)
Brightness 0 ~ 20 steps
WDR/BLC OFF / WDR / BLC
Day&Night Auto / Day / Night / Ext-in
White Balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
HLC Off / On / Night Only
DNR Auto / Off / Low / Middle / High
Mirror Off / H / V / H&V
Sharpness 0 ~ 10 steps
ACE Off / Low / Middle / High
Defog Off / On(Auto / Manual)
Privacy Mask Max. 24 Areas
Motion Detection Max. 3 Areas
Defect Detection Off / On
System NTSC / PAL
Communication Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update
Language English / Simplified Chinese / Traditional Chinese / Japanese
Power Source 9V to 15V DC
Power Consumption 500mA
Operating Temperature -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension 55.6(W) x 64(H) x 124(D)mm
Weight 400g
