| Model |

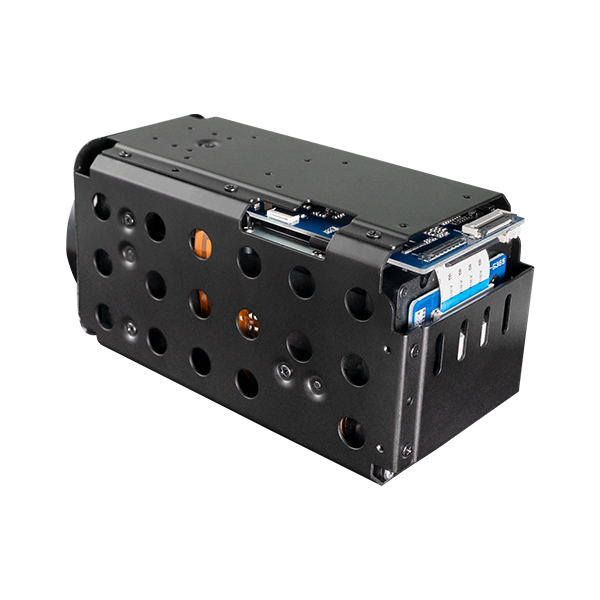

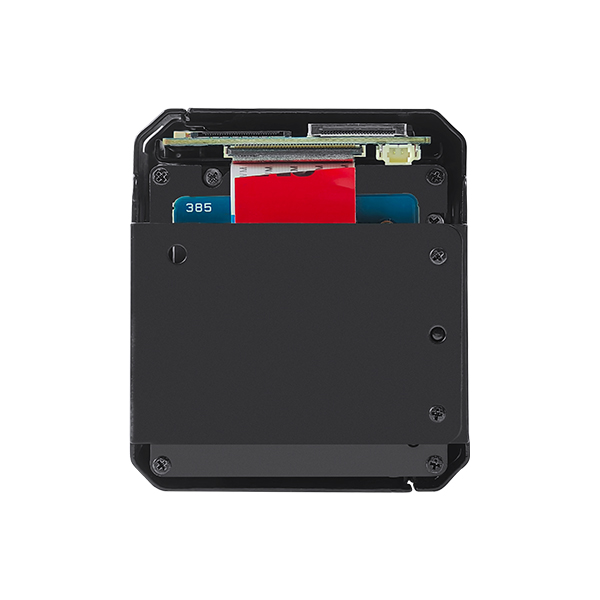

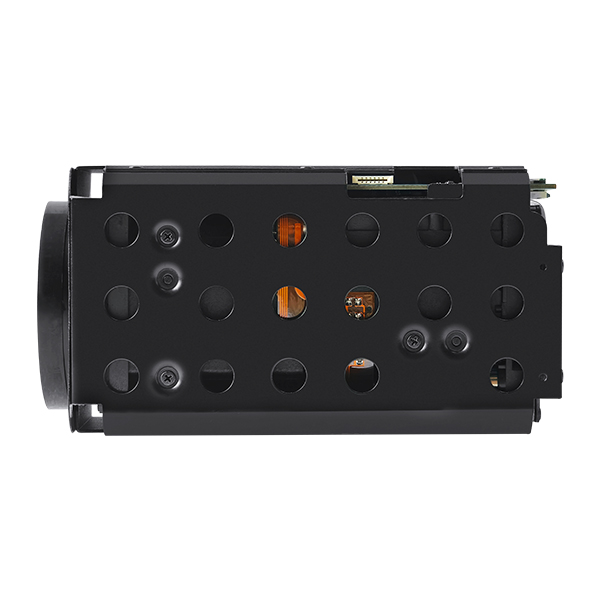

VRS-HD5365 |
| Image Sensor |
1/2.3" Sony Starvis CMOS Sensor |
| Total Pixels |
1,936 (H) x 1,226 (V) = 2.37M Pixels |
| Active pixels |
1,936 (H) x 1,216 (V) = 2.35M Pixels |
| Scanning system |
Progressive Scan |
| Sync. System |
Internal |
| Resolution |
Digital : 1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25
Analog : 700TVL |
| Min. illumination |
Color(1/30s, 48dB) : 0.3 lux, BW(1/30s, 48dB) : 0.01 lux
Color DSS(1/2s, 48dB) : 0.06 lux , BW DSS(1/2s, 48dB) : 0.002 lux |
| Video Output |
HD : LVDS, EX-SDI
Analog SD : CVBS(without WDR) |
| S/N Ratio |
more than 50dB (AGC off) |
| Lens |
| Lens type |
36x Day & Night Zoom Lens |
| Zoom Ratio |
Optical 36x, Digital 32x Zoom |
| Focal Length |
f = 6.0mm ~ 216mm |
| Aperture Ratio |
F1.5 (wide) ~ F4.8 (tele) |
| Angle of View (D, H, V) |
Wide |
59.13° |
52.62° |
31.08° |
| Tele |
2.24° |
1.95° |
1.10° |
| Function |
| Trigger Polarity |
Active Low / Active High |
| Trigger Delay |
Trigger Delay |
| Strobe Polarity |
Active Low / Active High |
| Strobe Delay |
Ext-Trigger : 0 ~ 255.9ms / Free run : 0 ~ (1V period – Width)ms |
| Strobe Width |
Ext-Trigger : 0 ~ 255.9ms / Free run : 0 ~ (1V period – Delay)ms |
| Shutter Speed(Ext-trigger) |
1/30(25) ~ 1/20,000 sec |
| AGC(Ext-trigger) |
0 ~ 10 steps |
| Iris(Ext-trigger) |
Close ~ F1.5 |
| Day&Night(Ext-trigger) |
Day / Night |
| AF Mode |
Auto / One Push / Manual |
| Min. Distance |
0.1 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh |
One Push / 1 ~ 10Day |
| Digital Zoom |
Off / MAX 2x ~ 32x |
| Exposure |
Auto / Iris.P / Shut.P / Manual |
| Digital Slow Shutter (DSS) |
Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only) |
| Brightness |
0 ~ 14 steps |
| BACK LIGHT |
Off / BLC / HLC |
| Night Function Set |
Off / On |
| White Balance |
Auto / One Push / Manual / Indoor / Outdoor |
| DNR |
Auto / Off / Low / Middle / High |
| Mirror |
Off / H / V / H&V |
| Sharpness |
0 ~ 10 steps |
| Defog |
Off / On(Auto / Manual) |
| Privacy Mask |
Off / On (8 points) |
| Motion Detection |
Off / On (3 points) |
| Defect Detection |
Off / On |
| System |
NTSC / PAL |
| Communication |
Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200
Protocol : VISCA / Pelco-D / Pelco- P / Update |
| Language |
English / Simplified Chinese / Traditional Chinese / Japanese |
| Power Source |
9V to 15V DC |
| Power Consumption |
500mA |
| Operating Temperature |
-20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH) |
| StorageTemperature |
-10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH) |
| External Dimension |
55.6(W) x 64.0(H) x 124(D) |
| Weight |
Approx 416g |
