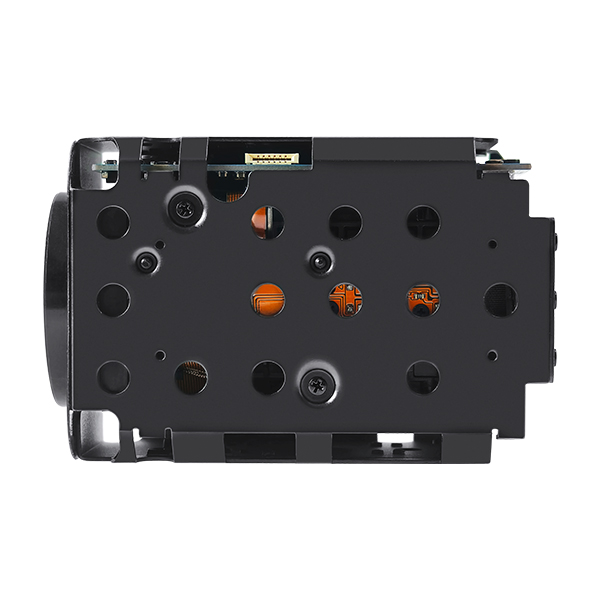

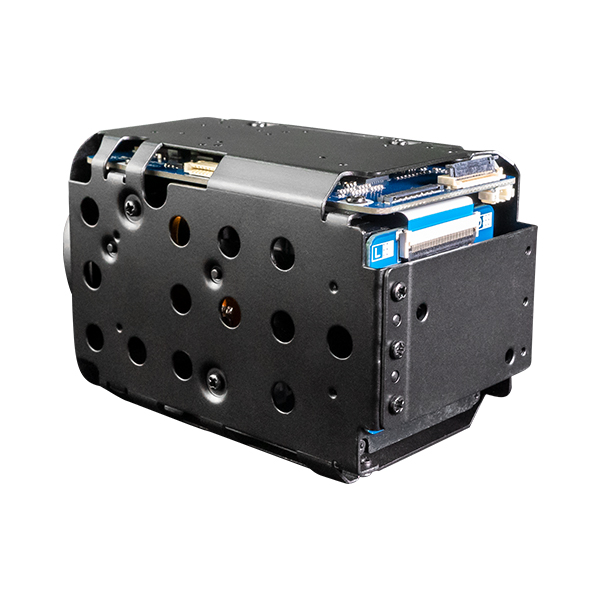

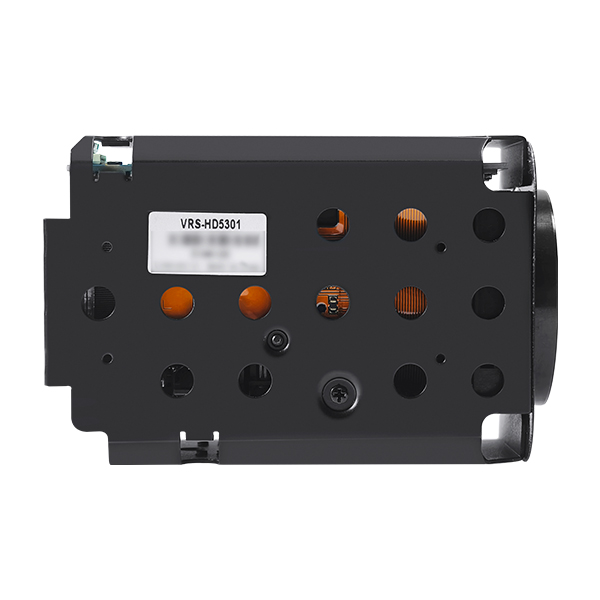

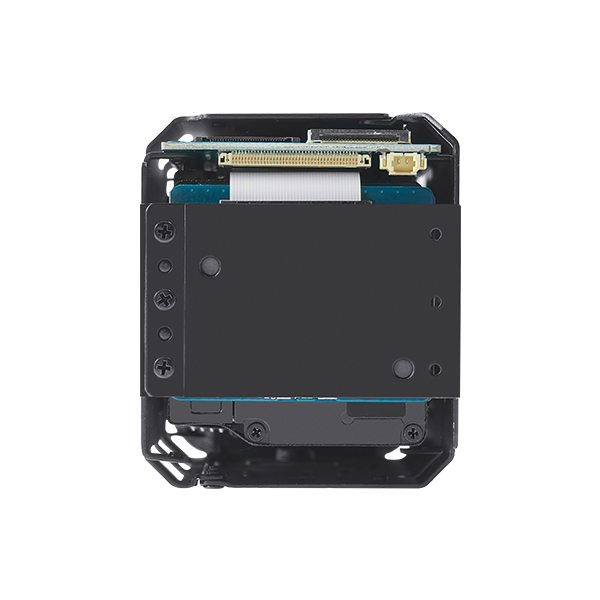

VRS-HD5301 PTZ Dome Camera 30X Zoom Camera Block

Category: Full HD Camera Block

VRS-HD5301 Feature: • Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.13MP) • Resolutions: Digital:1080p/60(50)fps,1080p/30(25)fps,720p/60(50)fps,720p/30(25)fps Analog:700TVL • Video Output: Digital output: LVDS,EX-SDI • Lens: f = 4.6mm - 136mm, F1.63 - F4.85 • Zoom: 30x Optical Zoom, 32x Digital Zoom • Other functions: Day & Night (ICR), Real-time True WDR, Digital Image Stabilization, High Light Compensation • Power supply: 9V to 15V DC • Size: 50.0 x 60.0 x 93.0mm • Weight: approx. 278g
Live Chat

View

The advanced camera device VRS-HD5301 comes with a 30x optical zoom,capable of shooting at full HD resolution.It has excellent imaging capabilities,both day and night,thanks to the built-in automatic color reduction (ICR)technology.In addition,the device also supports a wide dynamic range (WDR)feature.To further improve the image quality,it is also equipped with 2D and 3D digital noise reduction functions.

For privacy protection,the VRS-HD5301 provides a privacy mask function to ensure that only specific areas are captured in the picture.In addition,the digital Image Stabilizer (DIS)ensures that a stable image is obtained even when moving or shaking.Intelligent motion detection function can automatically identify and track moving objects,ensuring the capture of key content.

In terms of output,the VRS-HD5301 offers a variety of digital and analog output options.The digital output includes LVDS and EX-SDI,while the analog output supports NTSC and PAL composite video formats,but it should be noted that these analog outputs do not include wide dynamic range (WDR)functionality.

Features

• 1/2.8" 2MP Sony CMOS sensor
• 1080p 60fps/30fps, 720p 60fps/30fps
• 30x Optical Zoom(4.6mm ~ 136mm) & 32x Digital Zoom
• Day & Night (ICR)
• Wide Dynamic Range
• Digital Noise Reduction (2D+3D)
• Privacy Mask Function
• Digital Image Stabilization
• High Light Compensation
• Intelligent Motion Detection
• Defog Function
• Supports VISCA, Pelco-D/P Protocol
• Video Out : LVDS, EX-SDI, CVBS
