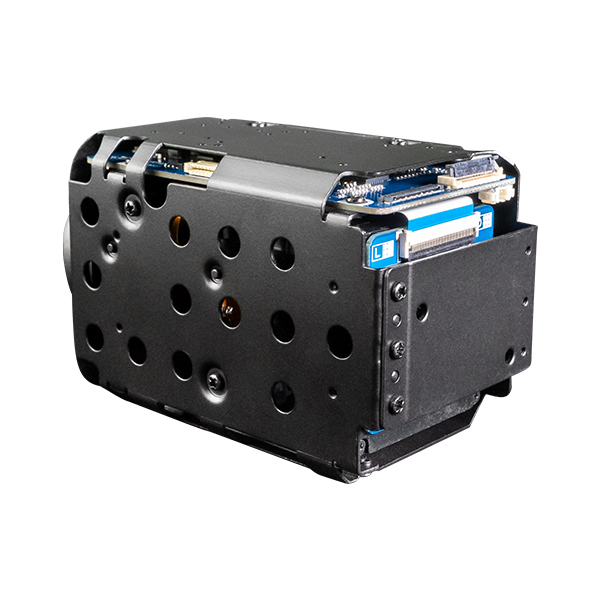

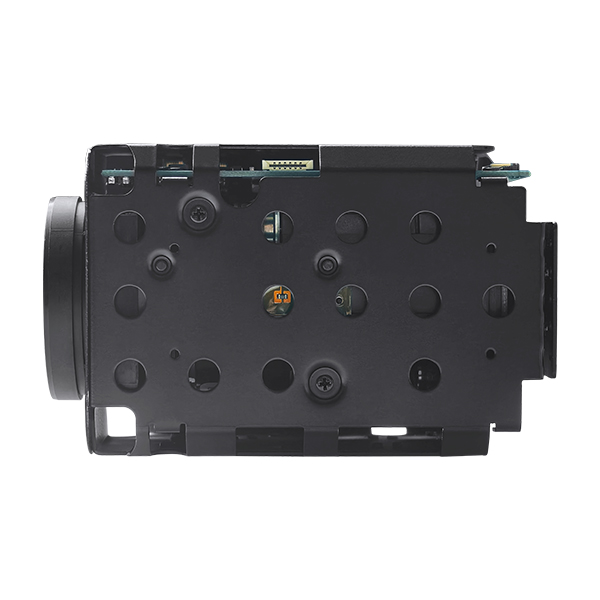

VRS-HD5201 20X Optical Zoom Auto Focus Camera Block

VRS-HD5201 20X Optical Zoom Auto Focus Camera Block

VRS-HD5201 Feature: • Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.12MP) • Resolutions: Digital:1080p/60(50)fps,1080p/30(25)fps,720p/60(50)fps,720p/30(25)fps Analog:700TVL • Video Output: Digital output: LVDS,EX-SDI • Lens: f = 5.2mm - 104mm, F1.5 - F3.5 • Zoom: 20x Optical Zoom, 32x Digital Zoom • Other functions: Day & Night (ICR), Real-time True WDR, Digital Image Stabilization, High Light Compensation • Power supply: 9V to 15V DC • Size: 50.0 x 60.0 x 97.0mm • Weight: approx. 232g

在线询价
  • 产品详情

View

  The HD camera block VRS-HD5201 features a 20x optical zoom to capture details over long distances.It supports full HD resolution and ensures image clarity and sophistication.In addition,it also has the day and night conversion function (ICR),wide dynamic range (WDR)technology,digital noise reduction (DNR)technology, privacy mask function,digital image stabilizer (DIS)and intelligent motion detection function.   These features work together to provide excellent monitoring and accuracy.In terms of output,the camera supports both digital output and analog output.The digital output includes the LVDS and the EX-SDI interface,while the analog output supports the NTSC and PAL composite formats.This means that you can easily transfer the monitoring images to other devices or displays to meet your actual needs.Overall this HD zoom camera is a superior performance,functional rich security monitoring module.Whether in the home,business or industrial field,it can provide a strong guarantee for your security.Choose this camera to make your monitoring more intelligent and more efficient!

Features

  • 1/2.8" 2MP Sony Starvis CMOS sensor • 1080p 60fps/30fps, 1080i 60fps, 720p 60fps/30fps • 20x Optical Zoom(5.2mm ~ 104mm) & 32x Digital Zoom • Day & Night (ICR) • Real-time True WDR • Digital Noise Reduction (2D+3D) • Privacy Mask Function • Digital Image Stabilization • High Light Compensation • Intelligent Motion Detection • Defog Function • Supports VISCA, Pelco-D/P Protocol • Video Out : LVDS, EX-SDI, CVBS

Product Specs

Volers VRS-HD5201 Product Specs

Model VRS-HD5201
Image Sensor 1/2.8" Sony Starvis CMOS Sensor
Total Pixels 1,945 (H) x 1,109 (V) = 2.16M Pixels
Active pixels 1,945 (H) x 1,109 (V) = 2.16M Pixels
Scanning system Progressive Scan
Sync. System Internal
Resolution Digital : 1080p/30, 1080p/25,1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25 Analog : 700TVL
Min. illumination Color(1/30s, 78dB) : 0.01 lux, BW(1/30s, 78dB) : 0.001 lux Color DSS(1/1s, 78dB) : 0.001 lux , BW DSS(1/1s, 78dB) : 0.0001 lux
Video Output HD : LVDS, EX-SDI Analog SD : CVBS(without WDR)
S/N Ratio more than 50dB (AGC off)
Lens
Lens type 20x Day & Night Zoom Lens
Zoom Ratio Optical 20x, Digital 32x Zoom
Focal Length f = 5.2mm ~ 104mm
Aperture Ratio F1.5 (wide) ~ F3.5 (tele)
Angle of View (D, H, V) Wide 63.2° 56.4° 33.5°
Tele 3.5° 3.1° 1.7°
Function
AF Mode Auto / One Push / Manual
Min. Distance 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m
Lens Refresh One Push / 1 ~ 10Day
Digital Zoom Off / MAX x2 ~ x32
Exposure Auto / Iris.P / Shut.P / Manual
Gain Control (AGC) Off / On
Shutter Speed 1/30(25) ~ 1/60,000 sec
Iris 0 ~ 20 steps
Digital Slow Shutter (DSS) Off / 2x / 4x / 8x / 16x / 32x (64x : 60 or 50 fps mode only)
Brightness 0 ~ 20 steps
WDR/BLC OFF / WDR / BLC
Day&Night Auto / Day / Night / Ext-in
White Balance Auto / One Push / Manual / Indoor / Outdoor / Auto-Ext
HLC Off / On / Night Only
DNR Auto / Off / Low / Middle / High
Mirror Off / H / V / H&V
Sharpness 0 ~ 10 steps
ACE Off / Low / Middle / High
Defog Off / On(Auto / Manual)
Privacy Mask Max. 24 Areas
Motion Detection Max. 3 Areas
Defect Detection Off / On
System NTSC / PAL
Communication Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update
Language English / Simplified Chinese / Traditional Chinese / Japanese
Power Source 9V to 15V DC
Power Consumption 500mA
Operating Temperature -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension 50(W) x 60(H) x 97(D)
Weight 232g
