| Image sensor |
1/3.0 Type Exmor CMOS
|
| Signal system |
HD:1080/59.94i , 1080/50i , 720/59.94p , 720/50p
SD:PAL, NTSC |
| Number of effective pixels |
About 2.0 megapixels (HD,16:9; SD4:3/16:9) |
| Focus system |
Automatic (Sensitivity: Normal/low) one-click AF, manual, alternate AF, zoom triggered AF |
| Lens focal length |
10x optical zoom, 12x electronic magnification F=5.1mm to 50.1 mm, F1.8 to F2.1 |
| Horizontal Viewing Angle |
50.0° to 5.4° |
| Electronic Shutter |
1/2~1/10000,21 step |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB |
| Video output |
HD component mode: Y/Pb/Pr
SD VBS: 1.0Vp-p (negative synchronization) Y/C |
| Gain |
automatic/manual (-3~28dB,2dB per gear) |
| Signal noise ratio |
> 50 db |
| AE controls |
automatic, manual, priority mode, brightness, EV compensation, backlight compensation, Slow AE |
| Backlight compensates |
on/off |
| Image effect |
Electronic flip, inversion, black and white, mirror effect |
| Privacy area covered |
On/Off (24 fast) |
| Camera operation button |
zoom (remote, wide Angle) |
| Camera control interface |
VISCA (TTL signal level), baud rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s stop bit: 1 bi |
| Power source |
DC6V~12V 1.5A |
| Power |
Approx. 3.8 W |
| Operating temperature |
0 ° C to 45 ° C（-4 to 140°F ） |
| Storage temperature |
-20 ° C to 60 ° C（-4 to 140°F ） |
| Size |
61.5mm×72mm×121mm |
| Net Weight |
about 450G |

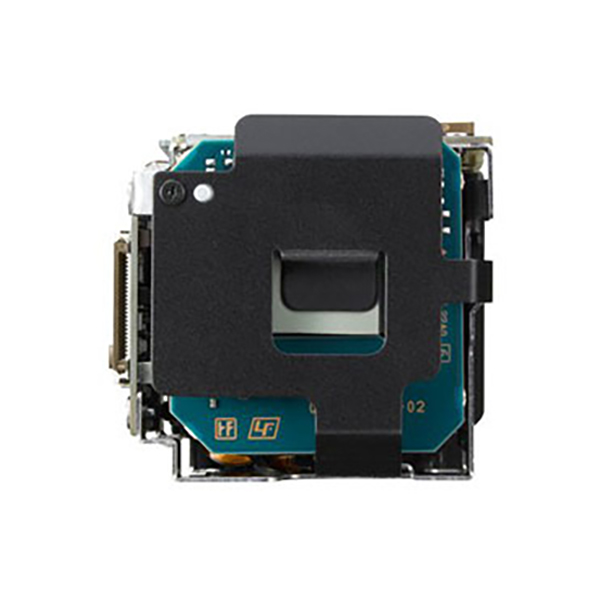

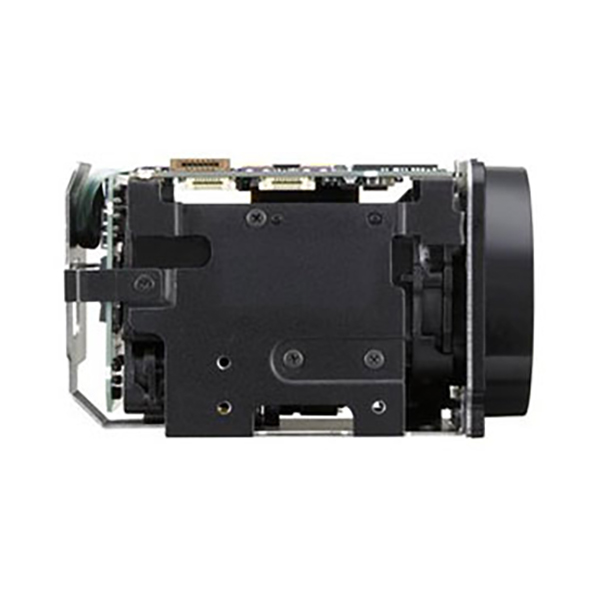

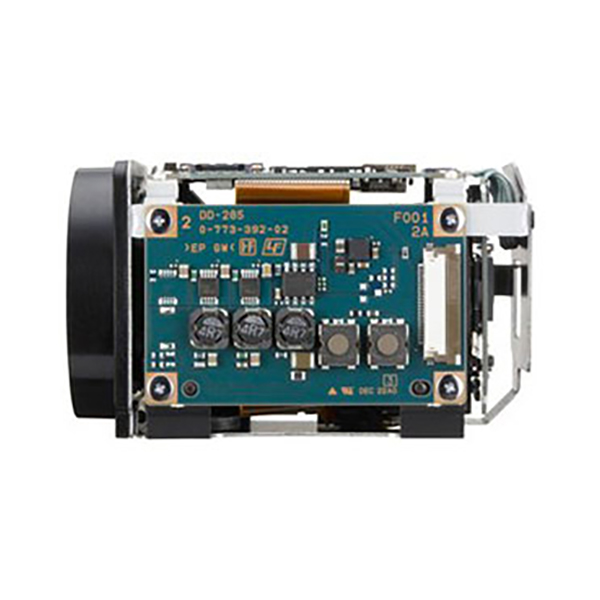

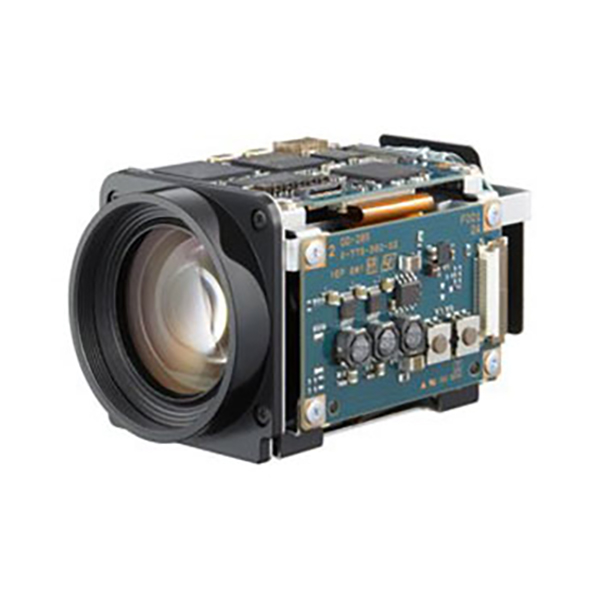

Sony FCB camera block
