| Product number |
FCB-SE600 |
| Camera assembly |
|
| Image Sensor |
Types of |
1/2.8 ” Exmor CMOS |
| Effective number of pixels |
About 3.27 million pixels |
| Lens |
motor drive 3x optical zoom |
| f=3.0mm ( wide-angle end) to 9.0mm ( distal) |
| F1.2 to F2.1 |
| Digital zoom |
12 times ( 36 times after using optical zoom ) |
| Viewing angle ( horizontal ) |
1080p mode |
About 90 degrees (wide Angle) |
| 720p mode |
About 60 degrees (distal) |
| Minimum object distance |
10mm ( wide-angle end) to 1500mm ( distal) ( default : 300mm) |
| Synchronization system |
internal |
| Minimum illumination (50%) |
High sensitivity mode |
0.25x ( F1.2, ICR off) 0.03 lx ( F1.2, ICR open) |
| Normal mode |
1.0 lx ( F1.2, ICR off) 0.1 lx ( F1.2, ICR open) |
| Recommended illumination |
100 lx to 100,000 lx |
| Signal to noise ratio |
50dB or more |
| signal system |
HD |
1080P/30, 1080P/25, 1080i/60(30PsF), 1080i/50(25PsF), 720p/59.94, 720p/50, 720p/29.97, 720p/25 |
| SD |
-- |
| Video output |
HD |
Analog : Component ( Y/Pb/Pr) number : Y/Cb/Cr 4:2:2, using LVDS ( signal format conforms to SMPTE274/SMPTE296) |
| SD |
VBS |
| Camera component control interface |
VISCA ( CMOS 5V class) , baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps stop bit: 1 bit |
| Electronic shutter speed |
1/1 to 1/10,000 seconds, a total of 22 steps |
| White balance |
Automatic, automatic tracking, indoor, outdoor, outdoor automatic, sodium lamp fixed / automatic, one-button, manual |
| Gain |
Auto/Manual ( -3 to +28 dB, +2 steps/ 16 steps) Maximum gain limit ( +6 dB to +28 dB, +2 dB step / total 12 steps) |
| AE control |
Auto, manual, priority mode ( shutter priority and aperture priority) , brightness, EV compensation, slow AE |
| Focusing system |
one-touch auto focus, manual |
| EV compensation |
no |
| BLC |
Have |
| Aperture control |
16 steps |
| Preset |
6 positions |
| Camera component performance |
|
| Wide-D* |
Yes ( on/off/automatic) |
| Image stabilization |
no |
| StableZoom |
no |
| Digital output interface |
Have |
| Automatic ICR |
Have |
| Spherical privacy zone shadowing |
Have |
| Noise reduction |
Yes ( on/off ) ( level 5 to 1 off a total of 6 steps) |
| Dynamic frame measurement |
Have |
| Alarm function |
Have |
| Slow AE response |
Yes ( about 5 minutes) |
| Image effects |
Yes ( electronic flip, negative, blackboard, mirror, color enhancement) |
| Image freeze |
Have |
| Slow shutter |
Have |
| Temperature reading |
Have |
| Title display |
Yes ( 20 characters/line, up to 11 lines) |
| Camera component mode display |
Have |
| Button switching control |
Have |
| Camera component operation switching |
no |
| General specifications |
|
| Storage temperature |
-20 ° C to 60 ° C |
| Storage humidity |
20% to 95% |
| Operating temperature |
-5 ° C to 60 ° C |
| Operating humidity |
20% to 80% |
| Power requirement |
5.0 V to 5.5 V DC |
| Power consumption |
Less than 1.2 W |
| weight |
83 g |
| Size ( width x height x depth) |
50.0 x 47.6 x 53.4 mm |
|

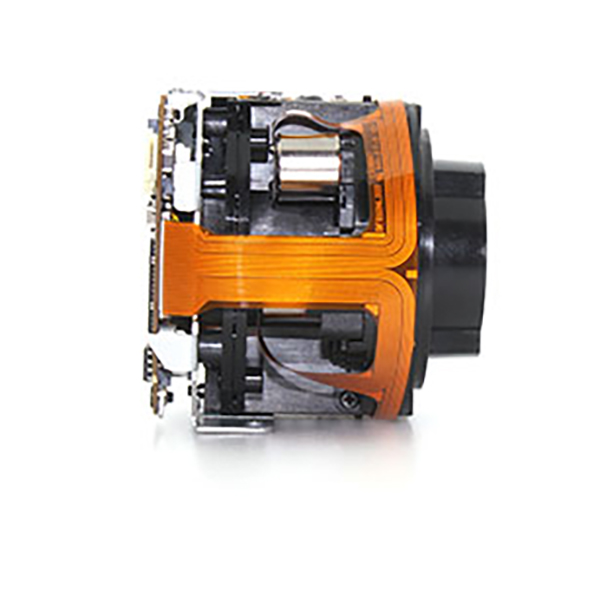

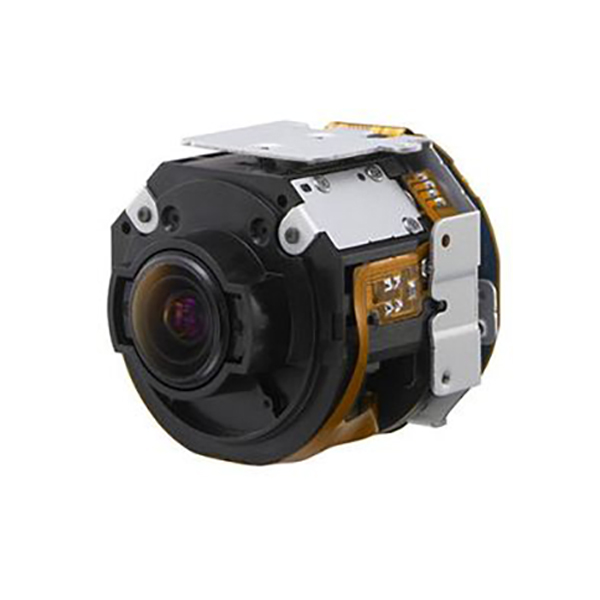

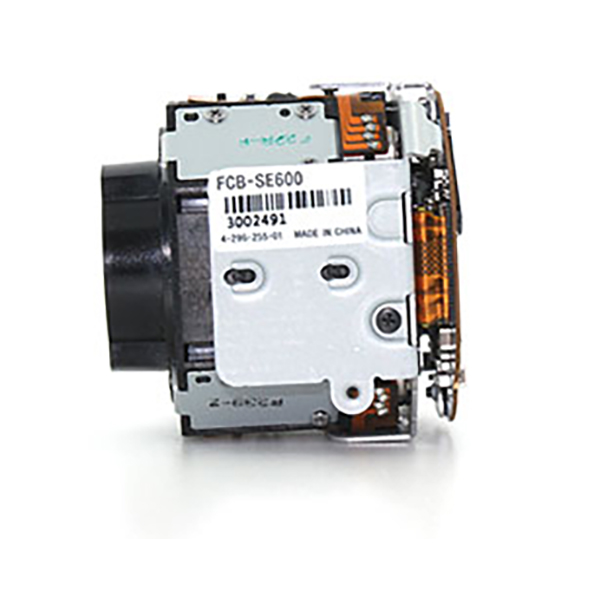

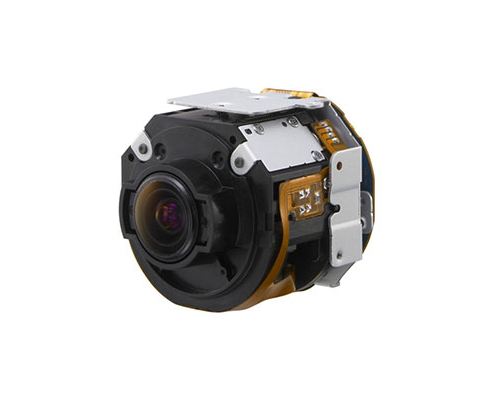

Sony FCB camera block
FCB-SE600 has a built-in 1/2.8-inch ExmorCMOS imager that achieves full HD resolution (1080i/60) and excellent sensitivity in low light conditions, making it ideal for security surveillance applications. In addition, the FCB-SE600 is equipped with a 3x zoom lens with motor zoom capability and one-touch AF (autofocus).FCB-SE600 inherits a unique set of features from Sony's popular FCB series of camera components, such as automatic ICR, Wide-D, privacy zone masking and noise suppression.
FCB-SE600 Key features
Small size
FCB-SE600 is extremely compact, and this all-in-one camera assembly can be easily integrated into space-constrained environments, such as 3" small dome cameras.
Motor drive zoom and one-button AF
Full-HD picture quality The
FCB-SE600 has approximately 3.27 million pixels for full HD (1080i/60) picture quality and HD resolution for high-standard applications.
The high-sensitivity
FCB-SE600 features the award-winning Sony Exmor CMOS imager for high-quality images in low-light environments.
Rich security performance
FCB-SE600 inherits the well-received security features of the FCB series, such as automatic color-to-black, Wide-D, privacy zone masking, dynamic frame measurement, temperature reading and digital noise reduction. With these features, camera components can be used in a variety of security applications.
FCB-SE600 is equipped with a 3x zoom wide-angle lens that can be used for motor zoom and focus even at 90-degree wide-angle viewing. This camera assembly can be easily integrated into small dome cameras that require wide viewing angle monitoring. In addition, this camera unit features an easy-to-use one-touch auto focus function.
