Sony ILX-LR1: A full-frame camera that enhances the efficiency of bridge inspection by drones

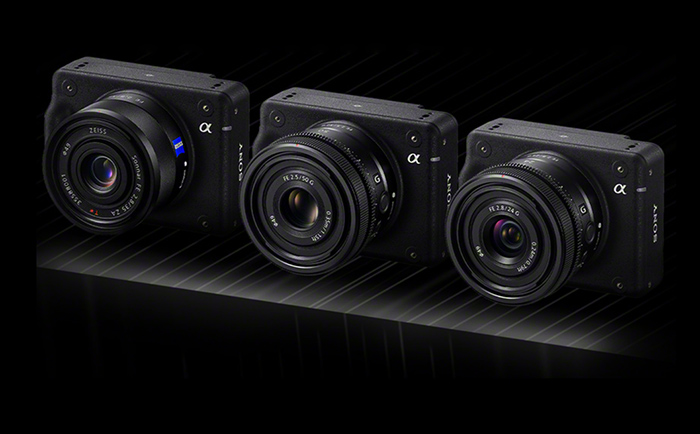

Sony ILX-LR1 is a full-frame expandable remote control camera specially designed for unmanned aerial vehicles (UAVs). With its professional design and powerful hardware composition, it can significantly improve the efficiency of UAVs in scenarios such as aerial photography, inspection, mapping, and rescue.

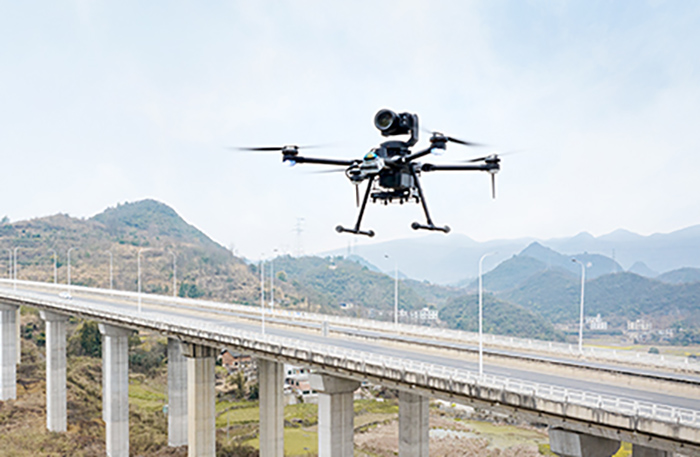

  I. Manifestations of the improvement in bridge inspection efficiency 1. High-quality image quality The Sony ILX-LR1 is equipped with a full-frame back-illuminated Exmor R™ CMOS image sensor with approximately 61 million pixels. The amount of detailed information captured in a single photo is about three times that of traditional cameras. This means that in bridge inspection, drones can reduce the number of shots, thereby saving time and effort, while also generating clearer and more detailed images.   2. Rapid imaging capability The imaging speed of Sony ILX-LR1 is very fast. It only takes about 1 second to take 3 photos. Compared with traditional camera devices, its response time is significantly shortened, which can help unmanned aerial vehicles quickly cover large areas during flight and significantly improve detection efficiency.   3. Reduce post-processing time Due to the high pixel and fast imaging capabilities of Sony ILX-LR1, unmanned aerial vehicles can generate higher-quality images during bridge inspection, reducing the difficulty and time of post-processing. With the addition of the new BIONZ XR image processor, the processing capacity has increased by approximately 8 times, effectively reducing latency and simultaneously enhancing the processing capabilities of video and lens images. This not only improves the detection efficiency, but also reduces the risk of repeated detection caused by blurred or unclear images.     4. Lightweight design The lightweight design of Sony ILX-LR1 (weighing only about 243 grams) significantly reduces the load of the drone, enabling it to be carried more easily and fly longer distances. This not only enhances the detection efficiency but also extends the endurance of the unmanned aerial vehicle, further expanding the detection range. The Sony ILX-LR1 is not only lightweight in body but also compact in size. It can go deep into hard-to-reach areas such as the bottom of Bridges and bridge crevices with small unmanned aerial vehicles, eliminating blind spots in traditional detection.   5. Remote control capability Through the Sony Camera Remote SDK, users can remotely control the menu and other functions of the Sony ILX-LR1 through their own software applications. They can adjust the shooting parameters and view high-definition images in real time through the remote terminal. This remote control ability enables the camera to better adapt to the needs of unmanned aerial vehicle bridge detection. The flexibility and efficiency of the detection have been further enhanced.   Ii. Practical Application Cases: Quantitative Verification of Efficiency Improvement 1.Bridge inspection in mountainous areas of Chongqing The terrain is mostly mountainous and plateau, with Bridges densely distributed and difficult to detect. Achievement: The Sony ILX-LR1 unmanned aerial vehicle system has reduced the inspection time of a single bridge from several days to just a few hours, significantly improving the accuracy of disease identification and reducing labor costs.     2. Inspection of canyon-crossing Bridges in Guizhou Challenge: Traditional detection requires the construction of temporary scaffolds, which is time-consuming and dangerous. Solution: The unmanned aerial vehicle (UAV) equipped with Sony ILX-LR1 completed the full-bridge scanning and identified more than ten cracks at the 0.2mm level, avoiding major safety accidents.   3. Chongqing Traffic inspection Project Data comparison: Traditional methods require lane closure and take several days. Drones equipped with Sony ILX-LR1 system only need a few hours for non-contact detection, with zero traffic impact To sum up, the 61-megapixel high-quality image quality, fast imaging capability, reduced post-processing time, lightweight design and remote control of Sony ILX-LR1 have played an important role in unmanned aerial vehicle bridge inspection, significantly improving the inspection efficiency, reducing costs, and enhancing the accuracy and safety of the inspection.
