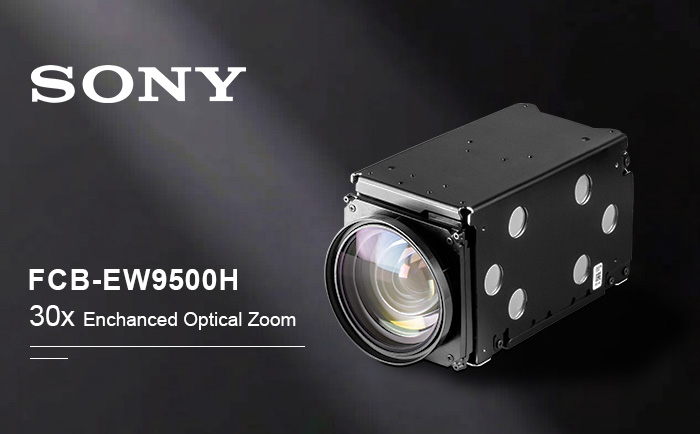

SONY FCB-EW9500H is a 4-megapixel full HD integrated camera that supports HDMI video output and 30x optical zoom, and has a wide range of application scenarios in the fields of security monitoring, UAV photoelectric pods, video conferencing, smart medical and intelligent transportation.
What is included in the FCB-EW9500H technical specification provided by SONY? What technical parameters can be shown to users? SONY (China) official authorized agent Ruiloog Electronics, for your detailed interpretation.
The SONY FCB-EW9500H technical specification contains performance indicators, functional characteristics, connection specifications, detailed specifications, electrical characteristics and precautions for use.
1. Performance indicators
Image sensor: The FCB-EW9500H uses a 1/1.8-inch STARVIS CMOS sensor with an effective pixel number of approximately 4.17 million and supports high definition to produce high-quality images.
Resolution: Up to 2160P/60 resolution video output, can provide clear and delicate images.
Optical Zoom: With a 30x enhanced optical zoom lens, excellent zoom performance can be achieved with a lens focal length ranging from 6.5mm to 195mm.
Digital Zoom: Provides up to 12x digital zoom, further expanding the flexibility and convenience of the picture.
2. functional characteristics
Autofocus: The camera automatically adjusts the focal length to ensure that the subject is always sharp. In addition, there is also a region autofocus function, users can choose the area of attention according to the actual situation, ensuring that the target object in the area always remains clear.
Noise reduction: The use of noise reduction technology, effectively reduce image noise, improve picture quality performance.
Wide dynamic range: Supports a wide dynamic range mode, which can maintain the clarity and detail of the image in environments with large changes in light.
Super image stabilizer: Built-in image stabilizer function, effectively reduce the image blur caused by jitter, improve the stability and clarity of the shot picture.
Low light and infrared night vision: Excellent low light performance and infrared night vision to provide clear images in low light environments.
3. Connection specifications
Video output: Digital HDMI output, support 4K HDMI video format.
Synchronization mode: Internal synchronization.
4. Detailed specifications
Dimensions: 56mm x 64mm x 125mm (width x height x length).
Weight: 439 grams.
Power consumption: 4.6 watts (motor operation: 6.3 watts).

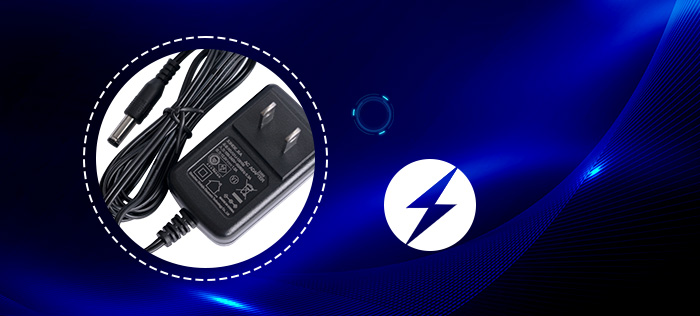

5. Electrical characteristics
Power supply voltage: The power supply voltage may vary according to the application scenario and configuration. For details, see the official documents or product manuals.
Power consumption: In the working state, the power consumption is moderate, to ensure long-term stable work at the same time, but also meet the requirements of energy conservation and environmental protection.
6. use precautions
Installation environment: Should be installed in a dry, ventilated, non-corrosive gas environment, avoid direct sunlight and rain.
Operating temperature: should be used within the specified operating temperature range, to avoid too high or too low temperature on the camera performance adverse effects.
Maintenance: Regularly clean the camera lens and shell to keep it in good working condition. At the same time, pay attention to check the cable and interface of the camera to ensure that it is firm and reliable.
Avoid vibration: During installation and use, the camera should be avoided from being subjected to strong vibration or impact, so as not to affect its performance and life.
Compliant use: When using cameras, you should comply with relevant laws and regulations and privacy protection provisions to ensure lawful and compliant use.
To sum up, SONY FCB-EW9500H technical specifications detail the product’s performance indicators, functional characteristics, connection specifications, detailed specifications, electrical characteristics and use precautions and other aspects of the content, to provide users with a comprehensive reference and guidance. In the process of use, the user should strictly abide by the relevant regulations and precautions to ensure the stable work and performance of the camera.
In the process of use, if you have any questions, please contact SONY (China) official authorized agent Ruiloog Electronics.
