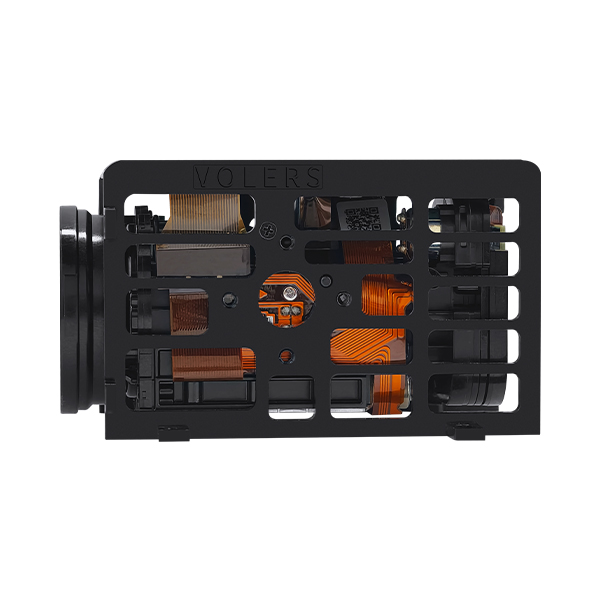

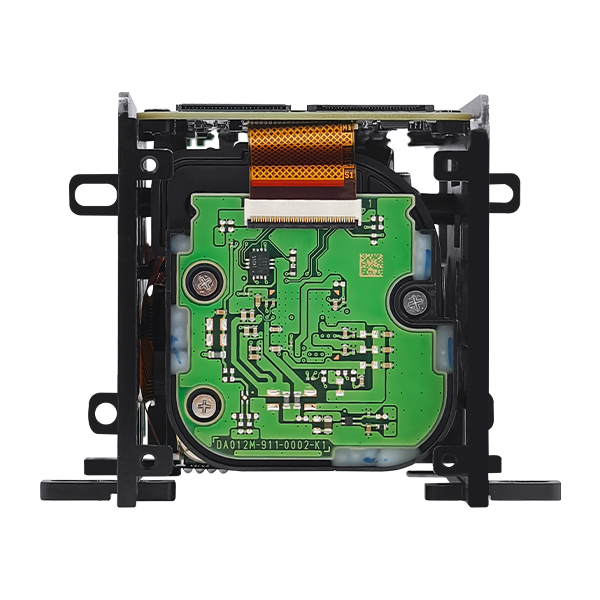

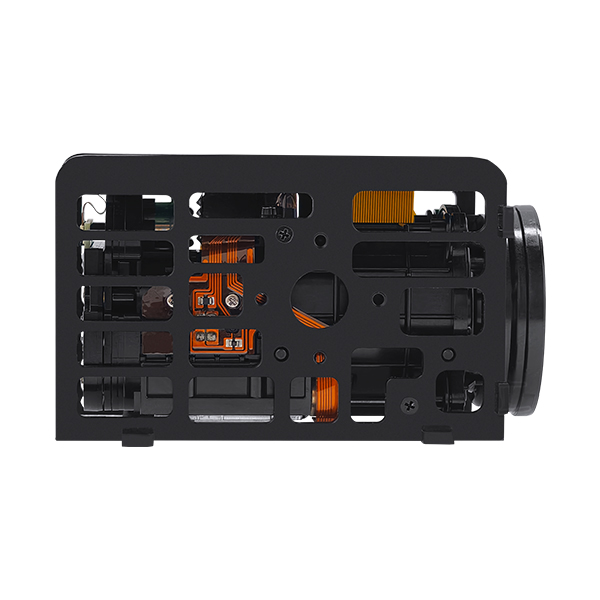

The FCB-EV9520L Weight-Reduced Version is a lightweight camera module secondarily developed by Ruiloog Electronic — an officially authorized distributor of Sony (China) and a professional high-definition video secondary development solution provider. Based on the original Sony FCB-EV9520L, it retains core performance while reducing overall weight, specially designed for load-sensitive scenarios such as drones, small pan-tilts, and handheld devices. Ⅰ. Why Launch the Weight-Reduced Version? The original Sony FCB-EV9520L camera module weighs 239g, which is relatively heavy among Sony integrated camera modules. This weight brings limitations in many application scenarios. For drone mounting, robot visual navigation, handheld devices, small pan-tilts, portable inspection equipment and other environments with strict weight restrictions, the standard original model often fails to meet application requirements. Ⅱ. Weight Reduction Solution Ruiloog Electronic redesigned the original metal housing of Sony FCB-EV9520L into a customized aluminum alloy housing. The weight is successfully reduced from the original 239g to approximately 165g, making the camera module more suitable for applications with high lightweight requirements. The weight-reduced version still adopts the original core components of Sony FCB-EV9520L, including the image sensor, lens, and image processing circuit. It fully maintains core specifications such as original high-definition image quality, low-light performance, and zoom capability. Ⅲ. Upgrades of FCB-EV9520L Weight-Reduced Version Compared with the FCB-EV7520 weight reduced versions, Ruiloog Electronic has made highly practical optimizations to the FCB-EV9520L Weight Reduced Version based on rich engineering experience and industry market demands. FCB-EV9520L Weight-Reduced Version vs FCB-EV7520 Weight-Reduced Version 1. Added Front Mounting Structure The FCB-EV9520L Weight Reduced Version supports front-side mounting, which enhances module stability, improves installation flexibility, optimizes heat dissipation performance, and simplifies the installation process. 2. Added U-shaped Groove Excellent optical axis consistency is one of the most popular features for drone applications. It enables drones to accurately lock targets at different shooting angles and zoom ratios while ensuring precise imaging. A key upgrade of the FCB-EV9520L Weight-Reduced Version is the added U-shaped groove design. It facilitates fine adjustment of optical axis consistency and improves imaging stability across different focal lengths and shooting angles. 3. Added Pre-cut Grooves Pre-cut grooves are designed at all 8 corners of the module. It not only improves installation flexibility, but also allows trimming the external pre-cut grooves to adopt internal mounting positions when a smaller size is needed. This further reduces overall weight and volume, achieving dual optimization. Ⅳ. Product Advantages 1. Reduce Load Burden: The lightweight design effectively lowers the load pressure of terminal equipment and improves overall operational performance. 2. Enhance Stability and Controllability: For scenarios requiring fast movement and frequent angle adjustment such as robot visual navigation and drone aerial photography, the lighter weight suppresses equipment jitter and ensures clear and stable images. 3. Expand Application Scope: It is not only applicable to traditional **video surveillance** and intelligent transportation, but also covers emerging industries with strict weight limits, including drones, service robots, and underwater robots.Features
Sensor: 1/2.8" STARVIS 2 CMOS Sensor (Approx. 2.13 million effective pixels) Max Frame Rate: 1080p/60fps Output Interface: LVDS Zoom: 30X Optical Zoom, 12X Digital Zoom Lens: 4.3mm ~ 129.0mm, F1.6 - 4.7 Output Resolution: 1920×1080, 1280×720 Minimum Illumination: 0.009 Lux (ICR OFF) Minimum Illumination: 0.00008 Lux (ICR ON) Horizontal Viewing Angle: Approx. 64.0° Image Stabilization: Super Image Stabilization (Super / Super+) Other Features: Wide Dynamic Range, Optical Axis Consistency, Infrared-sensitive Color Mode, Spot Auto Focus / Exposure / White Balance, Highlight Suppression, Point Light Reduction, Digital Noise Reduction, Motion Detection, Privacy Masking Dimensions: 69.0 × 54.0 × 94.0 mm Weight: Approx. 165gProduct Specs
FCB-EV9520L Weight Reduced Version
| Image Sensor | 1/2.8-type STARVIS 2 CMOS Sensor (Approx. 2.13M pixels) |
|---|---|
| Output Image Size (H x V) | 1920 x 1080, 1280 x 720 |
| Signal System | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| Minimum Illumination (50%, High Sensitivity MOde ON) | ICR-Off mode: 0.009 lx (Shutter Speed: 1/30 s), 0.0012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00008 lx (Shutter Speed: 1/30 s), 0.000005 lx (1/4 s or 1/3 s, 30%) |
| Minimum Illumination (50%, High Sensitivity MOde OFF) | ICR-Off mode: 0.09 lx (Shutter Speed: 1/30 s), 0.012 lx (1/4 s or 1/3 s) ICR-Off mode: 0.00063 lx (Shutter Speed: 1/30 s) |
| Recommended Illumination | 100 lx – 100,000 lx |
| Gain | Auto/Manual (0 dB – 50.0 dB), 0 – 28 steps |
| Shutter Speed | 1/1 – 1/10000 s, 22 steps |
| Sync System | Internal |
| Exposure Control | 0 dB – +- 10.5 dB, 15 steps |
| Backlight Compensation | Yes |
| Gamma | Standar/Straight Gamma |
| Aperture Control | 16 steps |
| White Balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), Spot AWB |
| AE (Auto Exposure Mode) | Full Auto, Manual, Priority Mode (shutter/iris), EV compensation, Spot AE, Slow AE |
| Image S/N | Image S/N |
| Lens (wide to tele) | 30x optical zoom，12x Digital Zoom f= 4.3 mm to 129 mm, F1.6 to F4.7 |
| Zoom Mode | Standard Mode / Variable Mode / Direct Mode |
| Zoom Movement Speed | Wide end to Tele end TBD Wide end to Digital 12x tele TBD Digital wide to Digital 12x tele TBD |
| Focusing System | Auto Focus (Normal AF, Interval AF, Zoom Trigger AF (Sensitivity: normal, low), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push, Near Limit, ICR-on Correction, Spot Focus |
| Focus Movement Time | TBD |
| Horizontal Viewing Angle (wide to tele) | Distortion Compensation Off : 64.0° to 2.4° Distortion Compensation On : 61.5° to 2.3° |
| Minimum Object Distance (wide end to tele end) | 100 mm – 1200 mm |
| Auto ICR | Yes:ON (B&W/Color) |
| Wide Dynamic Range (Wide-D) | Yes |
| Visibility Enhancer | Yes |
| Defog | Yes (low/mid/high) |
| Noise Reduction | Yes (3D + 2D / Independent setting (3D, 2D) |
| Progressive Scan Mode | Yes |
| Image Stabilization | Yes: Super image stabilizer (Super / Super+) |
| Spot Light Avoidance | Yes |
| Motion Detection | Yes |
| Privacy Zone Masking | Yes |
| Alarm | Yes |
| Slow AE Response | Yes |
| Picture Effects | Black White (Monochrome Image) |
| Picture Freeze | Yes |
| Electronic-Flip (E-FLIP) | Yes |
| Mirror Image | Yes |
| Slow Shutter | Yes |
| Temperature Readout | Yes |
| Title Display | Yes (20 characters / line, max. 11 lines) |
| Camera Mode Display | Yes (English) |
| Video Output | Digital : Y/Pb/Pr 4:2:2 (LVDS) (Y: 8 bit, C: 8 bit, Vsync, Hsync, Field, Clock) (SMPTE274M/SMPTE296M) |
| Camera Control Interface | VISCA protocol (CMOS 3.3V Level, 5.5V tolerance); Baud Rate : 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, Stop bit: 1 bit |
| Power Requirements | 7.0 V – 12.0 V DC |
| Power Consumption | 4.4 W (When motor operates: 5.4W) |
| Operating Temperature | -5 °C – +60 °C (23 °F to +140 °F) |
| Storage Temperature | -20 °C – +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 20% – 95% (Absolute humidity : 36 g/m3) |
| Storage Humidity | 20% – 95% (Absolute humidity : 36 g/m3) |
| Dimensions (W x H x D) | 69.0 x 54.0 x 94.0mm |
| Mass | Approx. 165g (5.82 oz) |
