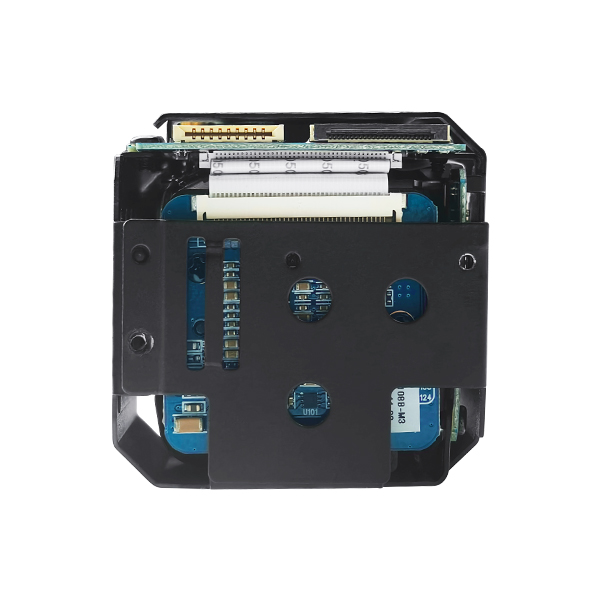

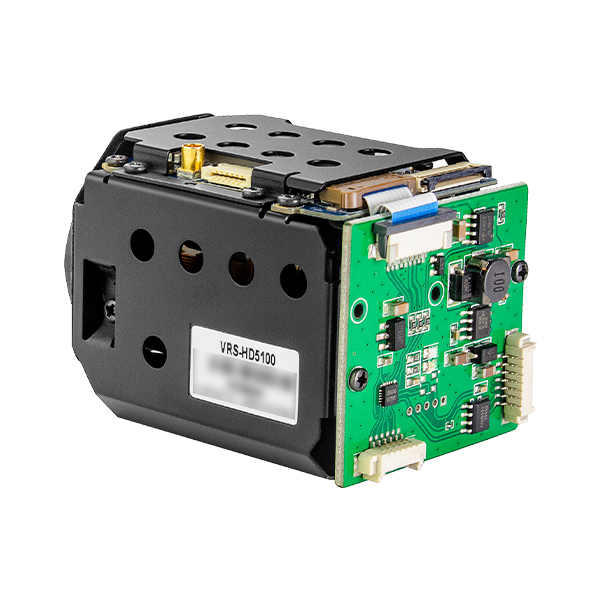

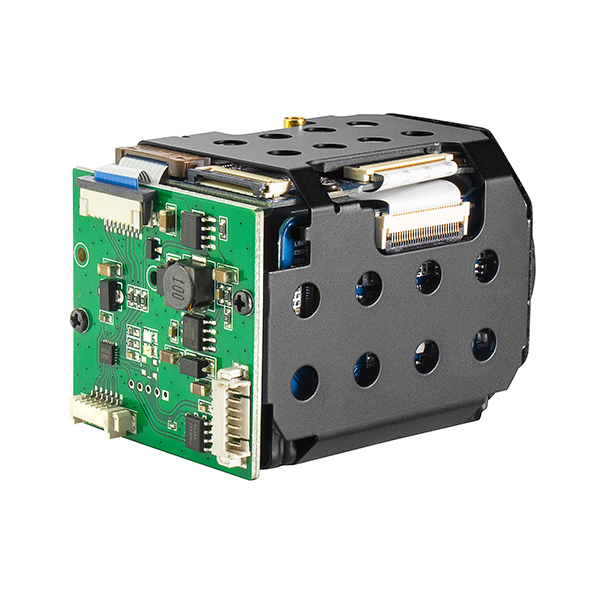

VRS-HD5100 10X Zoom SDI Output Drone Camera Block

VRS-HD5100 10X Zoom SDI Output Drone Camera Block

VRS-HD5100 Feature: • Sensor(Effective pixels): 1/2.8'' Sony CMOS(approx. 2.13MP) • Resolutions: Digital:1080p/60(50)fps,1080p/30(25)fps,720p/60(50)fps,720p/30(25)fps, Analog:700TVL • Video Output: HD : HD-TVI, HD-SDI, EX-SDI, Analog SD : CVBS(without WDR) • Lens: f = 5.1mm - 51mm, F1.6 - F1.8 • Zoom: 10x Optical Zoom, 32x Digital Zoom • Other functions: Day & Night (ICR), Real-time True WDR, Digital Image Stabilization, High Light Compensation • Power supply: 9V to 15V DC • Size: 43.0 x 44.0 x 61.0mm • Weight: approx. 118g

在线询价
  • 产品详情

View

  Volers VRS-HD5100 uses a top-notch 13"Panasonic CMOS sensor with a total pixel of up to 2.4M and an effective pixel of 2.1M. It has a 10x optical zoom function and the built-in 10x optical zoom lens has reliable performance. Volers VRS-HD5100 supports full HD resolution,including 1920x1080p and 1280×720p formats,and supports two frame rates of 30fps and 60fps,ensuring smooth and smear-free images.In adition,it also has a day and night conversion function (ICR), which can automatically adjust acording to the ambient light to ensure clear monitoring results during the day and night. Volers VRS-HD5100 uses WDR (wide dynamic range)technology.At the same time,it also supports both digital and analog output modes.Digital output includes HD-TVI,HD-SDI and EX-SDIl,and analog output is NTSC and PAL composite formats,making it easy to connect to various devices. In terms of protocols,this camera supports multiple protocols,including VISCA,PELCO-D,PELCO-P and UTC(UP the Coax)control methods,making it easy to integrate with other systems.In addition,it also supports scheduled snapshot and event snapshot functions,as well as one-key watch and one-key cruise functions,which greatly improves the convenience and efficiency of monitoring.

Features

  • 1/2.8" 2MP Sony CMOS Sensor • 1080p 60fps/30fps, 720p 60fps/30fps • 10x Optical Zoom (5.1~51mm) & 32x Digital Zoom • Day & Night (ICR) • Wide Dynamic Range • Digital Noise Reduction (2D+3D) • Privacy Mask Function • Digital Image Stabilization • High Light Compensation • Intelligent Motion Detection • Defog Function • Supports VISCA, Pelco-D/P Protocol • Video Out : HD-TVI, HD-SDI, EX-SDI, CVBS

Product Specs

Volers VRS-HD5100 Product Specs


Model VRS-HD5100
Image Sensor 1/2.8" Sony CMOS Sensor
Total Pixels 1,945 (H) x 1,109 (V) = 2.16M Pixels
Active pixels 1,945 (H) x 1,109 (V) = 2.16M Pixels
Scanning system Progressive Scan
Sync. System Internal
Resolution Digital : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 Analog : 700TVL
Min. illumination Color(1/30s, 60dB) : 0.003 lux, BW(1/30s, 60dB) : 0.0004 lux Color DSS(1/8s, 60dB) : 0.00075 lux , BW DSS(1/8s, 60dB) : 0.0001 lux
Video Output HD : HD-TVI, HD-SDI, EX-SDI Analog SD : CVBS(without WDR)
S/N Ratio more than 50dB (AGC off)
Lens
Lens type 10x Day & Night Zoom Lens
Zoom Ratio Optical 10x, Digital 32x Zoom
Focal Length f = 5.1mm ~ 51mm
Aperture Ratio F1.6 (wide) ~ F1.8 (tele)
Angle of View (D, H, V) Wide 64° 57° 34°
Tele 7.1° 6.2° 3.5°
Function
AF Mode Auto / One Push / Manual
Min. Distance 0.1 / 1.0 / 3.0 / 5.0 / 10.0 m
Lens Refresh One Push / 1 ~ 10Day
Digital Zoom Off / MAX 2x ~ 32x
Exposure Auto / Iris.P / Shut.P / Manual
Gain Control (AGC) Off / On
Shutter Speed 1/30(25) ~ 1/30,000 sec
Iris 0 ~ 20 steps
Digital Slow Shutter (DSS) Off / 2x / 4x / (8x : 60 or 50 fps mode only)
Brightness 0 ~ 20 steps
WDR/BLC OFF / WDR / BLC
Day&Night Auto / Day / Night / Ext-in
White Balance Auto / One Push / Manual / Indoor / Outdoor
HLC Off / On / Night Only
DNR Auto / Off / Low / Middle / High
Mirror Off / H / V / H&V
Sharpness 0 ~ 10 steps
ACE Off / Low / Middle / High
Defog Off / On(Auto / Manual)
Privacy Mask Max. 24 Areas
Motion Detection Max. 3 Areas
Defect Detection Off / On
System NTSC / PAL
Communication Baud Rate : 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 Protocol : VISCA / Pelco-D / Pelco- P / Update
Language English / Simplified Chinese / Traditional Chinese / Japanese
Power Source 9V to 15V DC
Power Consumption MAX 400mA
Operating Temperature -20℃ ~ +60℃ (Humidity : 0%RH ~ 90%RH)
StorageTemperature -10℃ ~ +50℃ (Humidity : 0%RH ~ 90%RH)
External Dimension 43(W) x 44(H) x 61(D)
Weight 118g
