Sony FCB camera block
Sony FCB-EV9520L, which uses SONY’s latest 1/2.8 “STARVIS 2 full HD color image sensor, offers a high sensitivity with a minimum illumination of 0.009lx.
With FULL HD resolution and 30x optical zoom, SONY FCB-EV9520L can be effectively used in equipment inspection, drones, intelligent farming and aquaculture.
The size of the product is the same as that of the regular FCB-EV7520 series for easy replacement installation.
Better performance parameters
Compared to the FCB-EV7520, the SONY FCB-EV9520L shows superior performance and characteristics in many aspects. Here is a detailed comparative analysis of the two products:

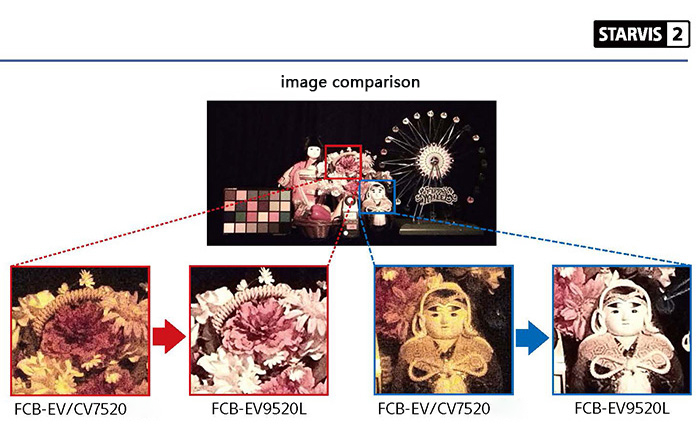

High sensitivity
The SONY FCB-EV9520L uses new pixel unit structure and circuit technology to make efficient use of light and achieve twice the sensitivity of traditional image sensors. As a result, clear images can be captured even at night and in dark environments.
The new pixel unit structure of SONY FCB-EV9520L uses diffractive photobooks and has a deeper photodiode layer than the traditional pixel unit structure. The longer optical path length increases the absorption efficiency of long-wavelength light, thus achieving high sensitivity.
Image stabilization
Smooth and stable images are obtained even under extreme conditions
The SONY FCB-EV9520L captures high-precision video with reduced blur, even in harsh environments with strong vibration, with greatly improved blur suppression and image stabilization. It is equipped with “S” and “S+” modes. Available in full HD (Fu11 HD) or HD (HD) output
■ The traditional electronic anti-shake system uses a larger correction area to suppress strong jitter
■S+ file By using a larger correction area than the “S file “, the “S+ file “can suppress strong image shake beyond the “S file” capability.
compatibility
Easy to replace traditional 1/2.8 “models

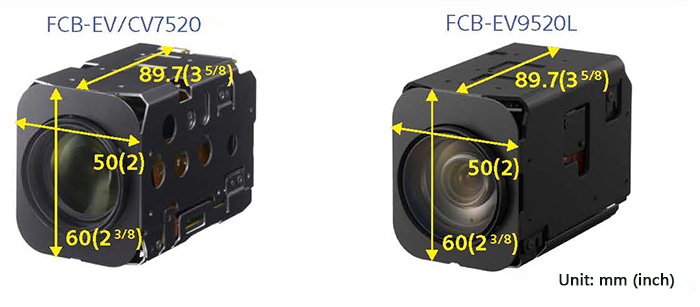

The SONY FCB-EV9520L has the same size housing as the traditional FCB-EV7520 series, making it easy to replace *. In addition, LVDS output pin definitions are compatible. Move the lens down about 2mm.
Application field
Equipment inspection
Infrastructure inspections involve a huge human effort remote-controlled submersibles equipped with cameras are increasingly underwater facilities. In addition to full HD high-resolution image quality and 30x optical zoom, the low-light performance enables the SONY FCB-EV9520L to shoot in dark areas, helping to improve the safety and efficiency of underwater inspections. This also applies to the inspection applications of drones and robots on the ground.
Rescue/security drones
The first 72 hours are considered critical for the rescue operation. Using the infrared function of near infrared light and the ability to achieve the lowest subject illuminance of 0.0091x, the SONY FCB-EV9520L, through improved night vision, can carry out search and rescue activities after sunset and at night, thereby improving the expected survival rate of mountain and sea rescue operations.
Intelligent farming and animal husbandry
The application of image recognition technology based on artificial intelligence in agriculture and animal husbandry is increasing. The SONY FCB-EV9520L’s excellent low-light performance and Wide Motion (WDR) function help the capture unit process the required detail, thus reducing the manpower requirement The vision-focused imaging and camera control technology we have cultivated in surveillance cameras helps reduce labor shortages and costs in the primary industry.
For the once classic heritage FCB-EV7520, SONY FCB-EV9520L with better performance parameters and the same size housing, compatible LVDS output pin definition, become the FCB-EV7520 easy to replace, the most cost-effective upgrade version.
(Some content refer to SONY China)
