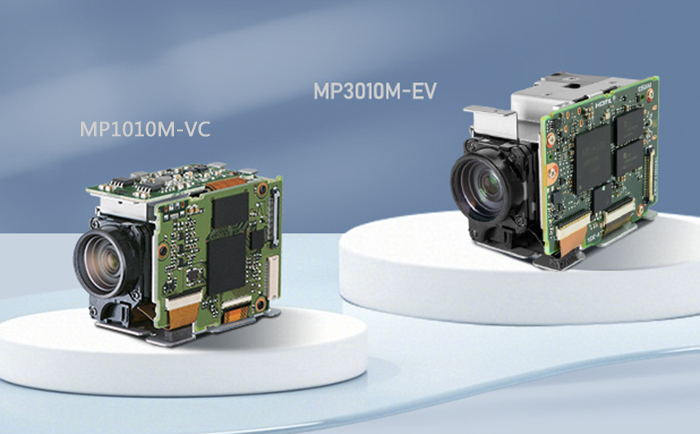

Tamron MP3010M-EV is the upgraded version of MP1010M-VC series, which has significant differences and advantages in fuselage design, hardware composition and performance parameters. The following is a detailed analysis of the comparison between the two:
Comparison of performance parameters
| Option | Tamron MP3010M-EV | Tamron MP1010M-VC |
| Sensor | 1/ 2.8 ” STARVIS CMOS | 1/3.0” progressive scanning CMOS |
| Signal System | 1080P/60FPS | 1080P/60FPS |
| Wide dynamic range | 130DB | To be determined |
| Optical zoom | 10X | 10X |
| Horizontal field of view | 6.7° (t) ~59.2° (W) | 6.7° (t) ~59.2° (W) |
| Vibration compensation |
EIS（Electronic）compensation for XY/rotation, | OIS（Optical ）compensation for X,Y Mal function at high frequency |
| Day/Night | ICR ON/OFF | none |
| Sensitivity | 0.1 lx (1/30s,F/1.8 50% Color) 0.025 lx(1/30s,F/1.8,50%,B&W) |
0.5 lx (1/30s,F/1.8 50%,Color) |
| Video output | Digital : LVDS / HDMI /UVC(USB video Class) Analog:CVBS 1.0V(p-p) 75Ω |
Digital : LVDS Analog:CVBS 1.0V(p-p) 75Ω |
| Light weight | Light weight | 78g |
| Size | 33.0×43.0×59.0 mm | 31.9×41.5×58.4 mm |
Common ground

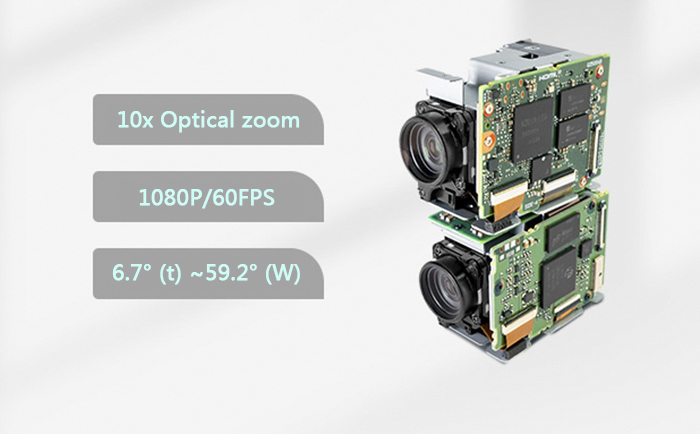

From the comparison of the above performance parameters, MP3010M-EV and MP1010M-VC are both compact and lightweight HD integrated movement modules of Tamron, which have the same characteristics in many aspects:
1, optical and digital zoom: Tamron MP3010M-EV and MP1010M-VC both use 10x optical zoom lens and 16x digital zoom, which provides users with a flexible focal length adjustment range, suitable for different distance capture needs.
2, resolution and frame rate: Tamron MP3010M-EV and MP1010M-VC both support full HD resolution up to 1920 x 1080, and the image format supports up to 1080P/60FPS, which means that they can provide clear and smooth video pictures.
3, horizontal field of view Angle: Tamron MP3010M-EV and MP1010M-VC have the same horizontal field of view Angle value: 6.7° (t) ~59.2° (W), their imaging effect under different focal lengths will be similar in field of view width.
Better MP3010M-EV
1, SONY high-performance sensor
Tamron MP1010M-VC: 1/3.0 “progressive scan CMOS
Tamron MP3010M-EV: 1/2.8 “SONY STARVIS CMOS
Tamron MP3010M-EV, a CMOS sensor using SONY STARVIS technology, greatly improves the image quality, sensitivity and sensitivity of the movement module, and can capture richer details and more colorful images than Tamron MP1010M-VC.
The MP3010M-EV’s higher sensitivity allows it to obtain clear images even in low light environments. The low illuminance of the Tamron MP1010M-VC is 0.5lx (color), while the low illuminance of the Tamron MP3010M-EV can reach: 0.1lx (color), an increase of about 5 times, which is particularly important for application scenarios that need to work at night or in low-light environments.
The introduction of SONY STARVIS technology makes the CMOS sensor more sensitive to light, and in low light environments, the Tamron MP3010M-EV HD movement module can actively switch from day mode (color) to night mode (black and white), ensuring that a clear picture can be shot at night. The Tamron MP1010M-VC does not have this function.
2, electronic anti-shake replace optical anti-shake function
Tamron MP1010M-VC: optical anti-shake
Tamron MP3010M-EV: electronic anti-shake
Tamron MP3010M-EV adds electronic anti-shake function, replacing the optical anti-shake function of Tamron MP1010M-VC, mainly brings the following advantages:
(1) The electronic anti-shake function of the Tamron MP3010M-EV can be better integrated and work together with other electronic functions of the movement module (such as autofocus, automatic exposure, etc.), thus expanding the function and application range of the movement module.
The optical stabilization of MP1010M-VC may affect the stabilization performance in some cases due to the change of lens focal length.
(2) The optical anti-vibration of Tamron MP1010M-VC can only compensate for horizontal and vertical vibration.
The electronic anti-shake of the Tamron MP3010M-EV adds rotational vibration compensation for higher flexibility and ADAPTS to more complex scenarios.
(3) Compared with optical anti-shake, the MP3010M-EV electronic anti-shake function usually does not require additional mechanical components to achieve anti-shake effect, so the overall weight of the movement module can be reduced.
Compared with the weight of the Tamron MP1010M-VC 78g, the weight of the Tamron MP3010M-EV has dropped by about 10%, only 70g. This is particularly important for applications such as the drone industry that require strict weight control, which can significantly improve the endurance and flight performance of drones.
3. Add HDMI and UVC on the basis of the original LVDS/CVBS interface
In addition to MP1010M-VC LVDS and CVBS interface, Tamron MP3010M-EV HD movement module also adds HDMI and UVC interface.
HDMI interface can provide high-definition video and audio signal transmission. In the camera module, the HDMI interface enables the module to be directly connected to the HDMI-supported display, TV or video recorder to achieve real-time preview and recording of high-definition video. It is suitable for security monitoring, UAV aerial photography and other application scenarios that require high-quality video output.
UVC (USB Video Class) is a USB video class specification, which defines a standard video and audio data stream format, making the MP3010M-EV more convenient to connect to a computer or other USB devices through USB, to achieve real-time video transmission and processing. More suitable for video conferencing, distance teaching, network broadcast and other scenarios.
In addition, the MP3010M-EV also supports simultaneous output of multiple interfaces, such as LVDS+HDMI, HDMI+UVC or LVDS+CVBS, which provides users with greater flexibility to choose the most appropriate video output mode according to different application scenarios and needs.
4, optimize the autofocus effect
Based on the combined performance of its optical zoom, high-sensitivity sensor and electronic anti-vibration technology, the Tamron MP3010M-EV is specially optimized for auto-focusing effect, which can more smoothly adapt to focal length changes from wide Angle to far end, thus ensuring the clarity and stability of the image picture.
In SUMMARY:
To sum up, Tamron MP3010M-EV, as an upgraded version of MP1010M-VC, has significant improvements and advantages in sensor performance, anti-shake technology, interface expansion and autofocus performance. These improvements make MP3010M-EV have wider application prospects and stronger competitiveness in many fields such as UAV, security monitoring, industrial automation, medical equipment, robots, and teaching systems. Whether in terms of picture quality, functionality or portability, the MP3010M-EV demonstrates its excellent performance and reliability as a high-definition integrated movement module.
