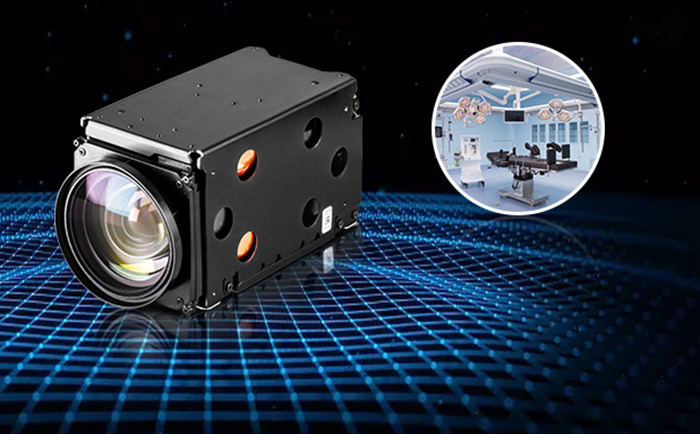

SONY FCB-EV9500L HD integrated camera module in the medical equipment industry is always ridiculed as “too bulky”, since “too bulky”, why is it still favored by many users in the medical equipment industry? This is inseparable from its powerful hardware composition and excellent performance. Moreover, “too bulky” is also relative, as long as it can meet the requirements of various scenes is the hard truth.
Why so bulky?
The SONY FCB-EV9500L HD integrated camera module may be considered “bulky” in some cases, its volume (width x height x depth) : 56.0 x 64.0 x 125 mm, weight: 439g, which is mainly due to its design characteristics and application requirements. Here are some possible reasons why it might seem bulky:
1. Optical components and image sensors

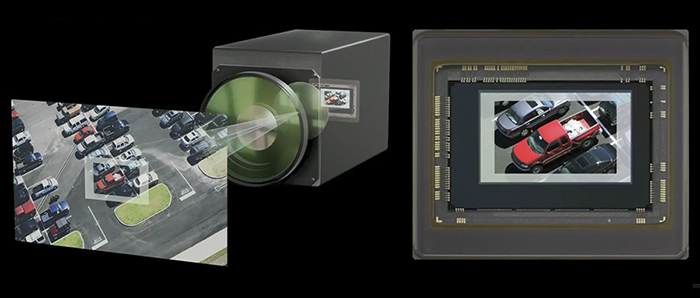

Large target Sensor: The FCB-EV9500L uses the 1/1.8-inch STARVIS CMOS Sensor, a larger sensor that provides better image quality and low-light performance, but also requires more mounting space and a more complex support structure, further increasing the weight of the device.
Optical Zoom lens: The FCB-EV9500L is equipped with a 30x enhanced optical zoom lens, a high-magnification optical zoom lens that requires more physical space to house the lens group and other optical components, thereby increasing the overall volume and weight.
2. Internal structure and materials
Rugged: In order to meet the high reliability and durability requirements of the medical device industry, the FCB-EV9500L may use a more robust material and a more complex internal structure to ensure the stability and long-term use of the device. These materials and structures tend to be heavier than lightweight designs.
Heat dissipation system: High-performance image sensors and processors generate a lot of heat during operation, so the FCB-EV9500L may be equipped with a more complete heat dissipation system to ensure stable operation of the device. These also add weight to the device.
3. Additional features
The FCB-EV9500L not only has high-definition picture quality and powerful optical zoom capability, but also integrates a variety of additional features, such as autofocus, fog transmission, wide motion, image stabilization, noise reduction, day and night switching. The implementation of these functions requires additional board and component support, which increases the complexity and weight of the device.
SONY FCB-EV9500L HD integrated camera core module is bulky, mainly due to its component composition, internal structure and rich additional functions. This is also an important factor in its ability to output high-definition, truer color images for the medical device industry.
solution
Although the FCB-EV9500L HD integrated camera core module performs well in performance, its weight (439g) may indeed pose a challenge for some scenes with strict requirements for weight. In this regard, SONY (China) authorized distributor – Xuan Zhan Technology also prepared two solutions.
1. Alternatives
SONY-EV9520L is recommended to replace FCB-EV9500L
The SONY FCB-EV9520L and FCB-EV9500L are SONY’s latest high-performance, all-in-one camera movement modules that use new lenses, image sensors, and image signal processors, all of which are comparable and distinctive in key performance and functionality.
And the FCB-EV9520L volume (width x height x depth) : 50 x 60 x 89.7mm, weight only 238g, are much smaller than the FCB-EV9500L, in the space and load limited scenarios can be more flexible application.

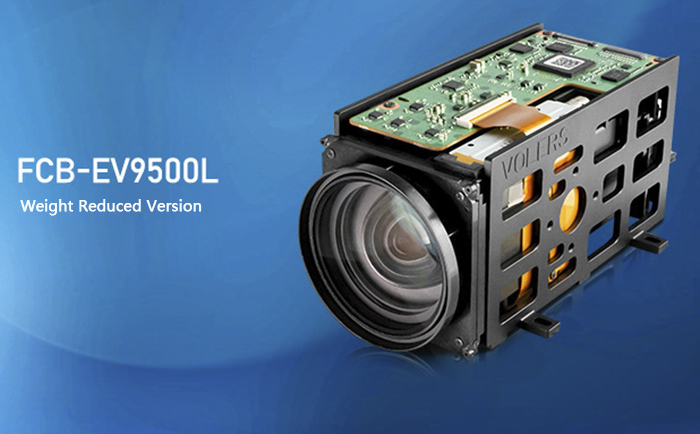

2. FCB-EV9500L weight reduction version
In view of the FCB-EV9500L “too bulky” defect, Danny Wang, senior engineer of Xanzhan Technology, specially developed its “weight reduction version” for the heavy and harsh industry, and successfully reduced the weight to “310g”. This remarkable weight loss achievement not only reflects a technical breakthrough, but also fully demonstrates Danny Wang’s deep understanding of user needs. On the basis of maintaining the original high performance, the camera after weight reduction is more convenient to carry and operate, and can better adapt to a variety of complex environments and high-intensity work needs.
After weight reduction, FCB-EV9500L can not only have a wide range of applications in the medical device industry, but also play its unique advantages in many fields. Such as drones, field cameras, remote teaching, industrial testing and other fields.
Sum up
SONY FCB-EV9500L HD integrated camera core module may appear “bulky” in some cases, but its excellent performance and wide application prospects make it still favored by many users. Through continuous technological innovation and product optimization, we can expect it to continue to inject new vitality into the development of all walks of life in the future.
