The close relationship between the pipeline robot and the zoom camera

When it comes to pipeline robots, it is necessary to mention the variable focus camera, which plays a crucial role as one of the core components of the pipeline robot. The zoom camera not only has the basic functions of the ordinary camera, such as image capture, video output, etc., but also has the zoom capability, which makes it show a unique advantage in pipeline detection, maintenance and troubleshooting.

First, functional coordination

1. Pipeline detection and exploration

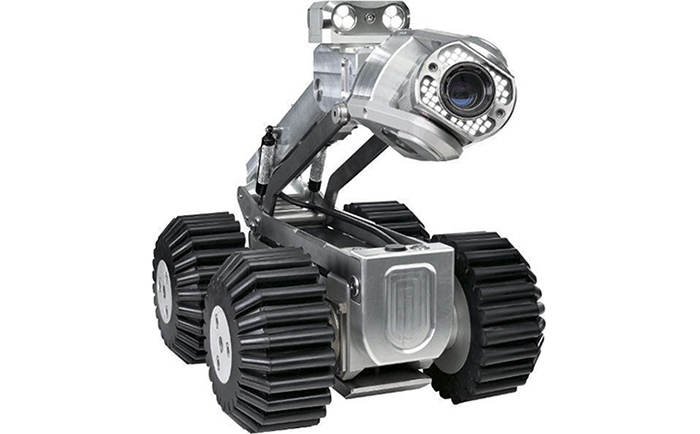

As a mechanical integrated system, the pipeline robot can walk automatically inside or outside the pipeline, carry sensors and operating machinery to carry out a series of pipeline operations. The zoom camera, as one of its core components, can go deep into the pipeline, explore the parts that the naked eye cannot see, and provide a clear image of the internal situation.

2. Optical zoom and detail capture
The zoom camera has the ability to change the focal length, which can be adjusted according to the actual situation inside the pipe, so as to capture clear pictures at different distances and angles. This capability is particularly important in pipeline inspection, where there may be obstacles or detailed areas that need to be observed.

Second, the advantages of zoom cameras

1, flexibility and adaptability: The zoom function allows the camera to capture details of different distances and angles by adjusting the focal length without changing the physical position. This is particularly important in environments such as pipelines, which are closed and may have complex structures, as it enables a wider inspection range to be covered, reducing omissions.

2, improve the detection accuracy: by accurately adjusting the focal length, the zoom camera can clearly show the cracks, corrosion, deposits or other abnormal phenomena inside the pipeline, so as to help the operator more accurately judge the condition of the pipeline. This high-precision detection helps identify potential problems in advance and avoid more serious consequences.

3, real-time data transmission: combined with the pipeline robot, the zoom camera can transmit the captured images and videos to the control terminal in real time. This real-time performance allows the operator to immediately assess the condition of the pipeline and take appropriate maintenance or repair measures.

4, enhance security: For some difficult to access or dangerous pipeline areas, the use of pipeline robots equipped with zoom cameras for detection can greatly reduce personnel risks. The operator can observe the inside of the pipeline from a safe distance through a monitoring screen, without having to go directly into potentially hazardous areas.

5, promote intelligent development: With the progress of technology, some of the zoom cameras are also equipped with low-light color image output, regional automatic exposure, regional automatic focus, regional automatic white balance and other functions. Such as SONY FCB-EV9520L, FCB-EW9500H, FCB-EV9500M and other zoom cameras have these excellent performance. These capabilities can further improve inspection efficiency and accuracy, and drive pipeline inspection and maintenance to a more intelligent and automated direction.

Three, Technical characteristics and advantages

1, high-definition high resolution

The pipeline robot camera usually uses high definition and high resolution cameras, which can shoot clear and detailed pictures. This is critical for pipeline inspection, as even minor cracks, corrosion or other damage can have a significant impact on the safe operation of a pipeline.

2, Automatic exposure and slow response
The pipeline camera should support the automatic exposure slow response function to cope with sudden changes in lighting conditions inside the pipeline. This feature ensures a clear picture in the event of low or sudden light changes.

3, Infrared night vision function
Some pipeline robot cameras also have infrared night vision, such as the SONY FCB-EV9520L, which can work normally in low-light environments. This is useful for scenarios where pipe inspection is required at night or in low light conditions.

Four, Application scenarios and examples

1. Pipeline quality inspection and flaw detection

In oil, natural gas, chemical industry, water supply, drainage, underground pipeline and other fields, the combination of pipeline robot and zoom camera is widely used in pipeline quality inspection, flaw detection and other aspects. By taking images of the inside of the pipeline, potential safety hazards can be discovered and dealt with in a timely manner.

2. Fault diagnosis and cleaning
In the process of pipeline fault diagnosis and cleaning, the zoom camera can photograph the detailed situation inside the pipeline, providing accurate diagnosis basis and cleaning guidance for technicians.

Five, Summary

In summary, the close relationship between the pipeline robot and the zoom camera is mainly reflected in the aspects of functional collaboration, technical characteristics and advantages, and application scenarios and examples. This combination not only improves the efficiency and accuracy of pipeline inspection, but also reduces the risk and cost of manual inspection. In the future, with the continuous development of technology, the combination of pipeline robots and zoom cameras will be applied and promoted in more fields.

In short, the zoom camera, as one of the core components of the pipeline robot, plays an irreplaceable role in pipeline inspection, maintenance and troubleshooting. With the continuous progress of technology and the continuous expansion of application scenarios, its importance and value will be applied and promoted in more fields.
