Sony FCB camera block
SONY FCB-EV7100 have been widely used and recognized in UAV, security monitoring, medical, pipeline robots and other fields for their compact and lightweight, 10x optical zoom, real color reproduction at high brightness and powerful performance.
With the development of science and technology, the promotion of technological innovation, SONY has to announce the suspension of FCB-EV7100, today we recommend their replacement VRS-HD5101, it can be competent?

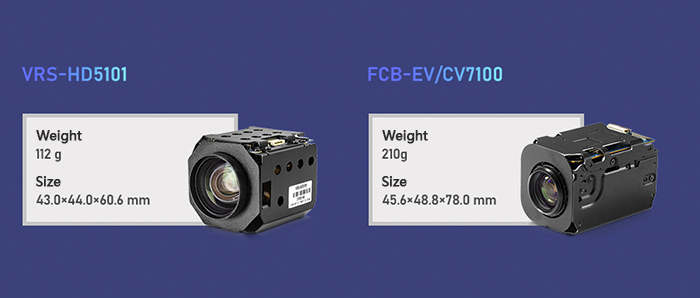

Volume weight comparison
Most of the industry areas that choose SONY FCB-EV7100 are due to their small and lightweight body, size (width x height x depth) : 45.6×48.8× 78.0mm, weight only 210g, plays an important role in the industry with strict requirements for space and weight.

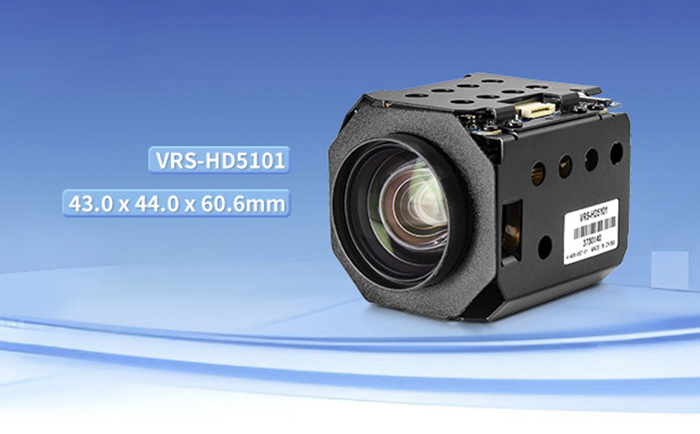

In terms of size and weight, the VRS-HD5101 shows a superior advantage over the SONY FCB-EV7100. Specifically, the VRS-HD5101 has a size (width x height x depth) of 43.0 x 44.0 x 60.6mm, which is more compact than the SONY FCB-EV7100, making VRS-HD5101 more suitable for use in space-constrained environments. At the same time, the VRS-HD5101 weighs only 112g, which is also much lower than the SONY FCB-EV7100, further reducing the overall burden of the device and making it easy to carry and install.
This compact and lightweight design enables VRS-HD5101 to have a wide range of potential applications in a number of fields, including but not limited to drones, robotics, medical endoscopes, security monitoring, pipeline inspection, and research exploration. In these fields, the size and weight of the device is often one of the key factors in determining its successful application. With its excellent size and weight, VRS-HD5101 can easily adapt to a variety of complex environments to provide high-quality imaging support for related industries.
Sensor lens comparison
SONY FCB-EV7100 feature a SONY 1/2.8 “Exmor R CMOS sensor with around 2.38 million effective pixels and a 10x optical zoom and 12x digital zoom.
The VRS-HD5101 uses a 1/3.0″ Panasonic CMOS sensor with 2.48 megapixels, 10x optical zoom and 32x digital zoom.
The sensor sizes and effective pixels used by the two are not very different, but the FCB-EV7100 use SONY’s own CMOS sensor, which is known for its high pixel, high dynamic range and low noise performance.
The VRS-HD5101 Panasonic CMOS sensor also has excellent performance in stability, reliability and color reproduction, both of which have their own advantages and characteristics.
SONY FCB-EV7100 and VRS-HD5101 have the same 10x optical zoom, but VRS-HD5101 has a larger multiple of digital zoom, although digital zoom will reduce the image quality to a certain extent, but in some specific application scenarios, Such as remote monitoring, live sports events, remote teaching, etc., the picture can be enlarged to capture more details, and achieve more flexible and diversified capture effects.
Support 1080P60FPS
SONY FCB-EV7100 and VRS-HD5101 support a common highest signal standard: 1080P60FPS, can achieve a smooth 60 frames per second picture capture at 1080P full HD resolution, can present a more smooth natural, more layered and smooth transition from wide-angle to long-distance picture.
Sum up
Choosing VRS-HD5101 as a replacement for FCB-EV7100 is a wise and correct choice, because it not only shows significant advantages in terms of volume and weight, but also adapts to the requirements of modern technology for equipment portability and space utilization. Although the sensor size is slightly smaller, its effective pixels and performance are still excellent, and it can meet the needs of most application scenarios. Moreover, the VRS-HD5101 provides more flexibility in terms of digital zoom, providing more possibilities for image output in specific scenes.
