Sony FCB camera block

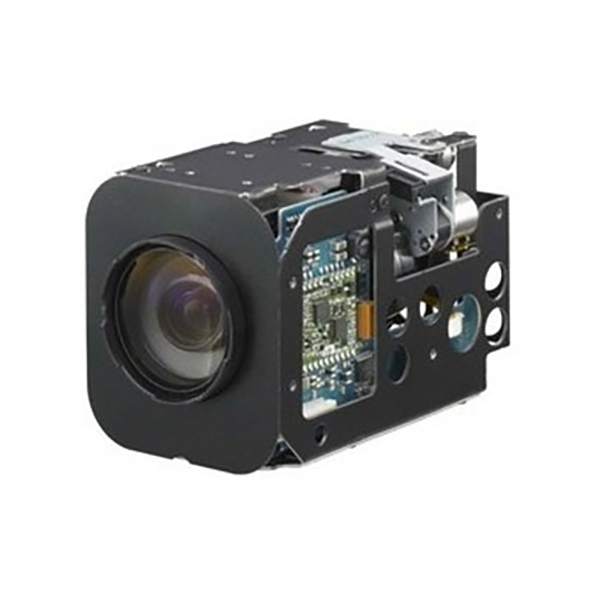

Sony FCB-EX490EP Product Details:
530TVL, 1/4″ EXview HAD CCD, 18x, analog integrated movement; wide dynamic function, advanced backlight compensation; support for slow development of AE response for secondary development, allowing camera modules to change even when illumination conditions are constantly changing Underneath, you can also take clear pictures.
With these advanced technologies and high-quality imaging devices, the camera module can capture high-resolution images of 530 TV lines, and the clarity of the picture details is amazing.The FCB-EX color-integrated camera module family is growing, allowing users to choose the model that meets their monitoring needs in 36, 26 and 18 times different functions depending on their needs.
Moreover, these camera modules also feature advanced backlight compensation, which supports 128 times the dynamic range design development compared to conventional camera modules, and can truly restore images in high contrast environments.Supporting the need for secondary development of the slow AE response function allows the camera module to capture clear images even when the illumination conditions are constantly changing. With this feature, the FCB EX product line is capable of handling a wide range of applications.
Moreover, these camera modules also support some convenient functions that need to be developed twice, such as dome privacy masking, video dynamic frame detection, multi-line character display, and so on. In addition, it also inherits many secondary development functions of the FCB series of original products, such as electronic flip, image freeze, automatic infrared filter mode (AUTO ICR) and so on. Excellent image quality and support for unique and convenient features that require secondary development. The FCB EX series camera modules of the Chinese model are the most integrated, ball, pan/tilt camera, indoor and outdoor security and traffic monitoring applications. Good module solution.
Sony FCB-EX490EP Product Details:
1/4″ EXview HADTM CCD
530 TV line horizontal resolution 216x
zoom ratio (18x optical, 12x digital)
wide dynamic function *
Advanced privacy masking function *
Video dynamic frame measurement function *
Minimum illumination: 0.7Lx (typical), 1 / 50 second shutter speed
0.07Lx (typical), 1/3 second shutter speed
multi-line display subtitles *
E-flip function *
automatic infrared filter mode (ICR) *
image * freeze function
provides the external device interface module to the imaging control *
Electronic shutter / slow shutter function *
High-speed digital serial port (up to 38.4Kb/s) with TTL signal level control (VISCA protocol)* internal/external synchronization
Standard * for secondary development
