Medical SDI monitor 21.5 inch LED full HD 1920X1080 brightness 300cd/㎡ 16:9

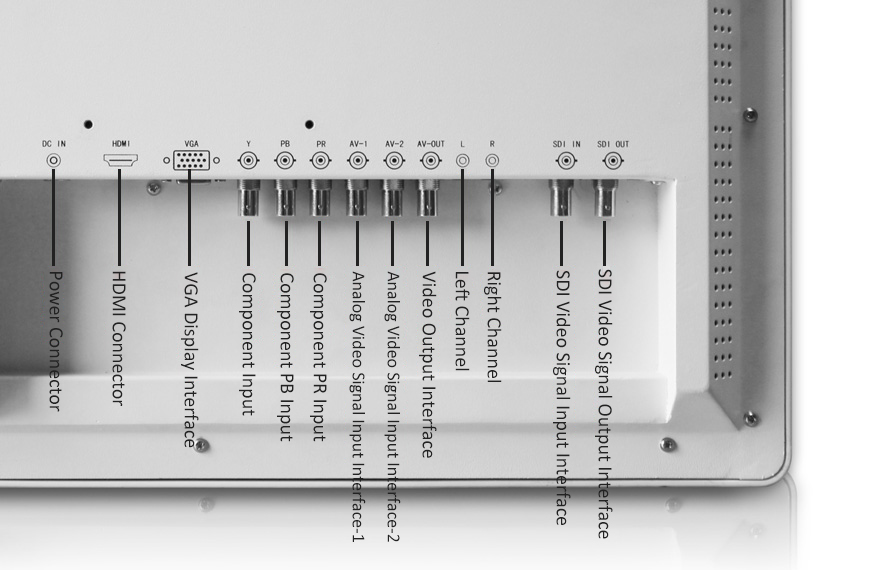

Medical SDI monitor Product Details Hd resolution medical monitor The VRS-M2201SD-W medical monitor features a 21.5-inch LCD panel with high definition resolution (1920 x 1080) and extensive input/output interfaces. This medical monitor provides clear, detailed, high-definition images. Medical SDI monitor-6

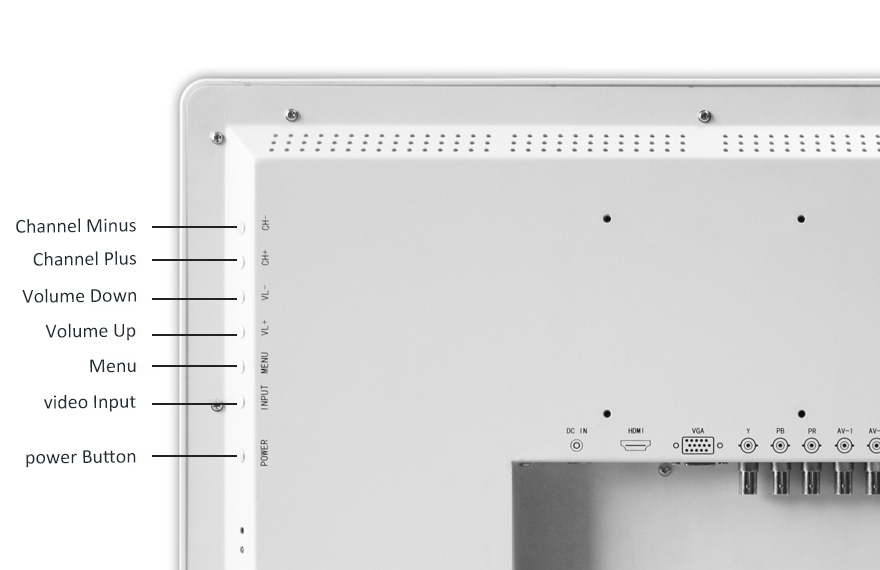

Extensive input/output interfaces The VRS-M2201SD-W medical monitor is compatible with high-definition, standard definition digital signals and various analog signal inputs, and is standard with AV/SDI video input and output terminals. It also uses an HDMI input interface to receive high-definition signals up to 1080/60P. Medical SDI monitor-7

Product Specs

Medical SDI monitor Product Specs:

Main parameters
Model	VRS-M2201SD-W
Panel size	21.5寸(HD brand LCD screen）
Backlight mode	LED
Display area	475.2mm(W)×267.3mm(H)
Picture ratio	16﹕9
The maximum resolution	1920×1080
The display color	16.7M
Point distance	0.2475(H)×0.2475(V)
Brightness	300cd/㎡
The contrast ratio	1500﹕1
Viewing Angle	850/850/750/650
The corresponding time	8MS
Field frequency	50Hz、60Hz、70Hz
Input and output
SDI IN	1
SDI OUT	1
AV IN	22(2×BNC)
AV OUT	1
S-VEDIO	1
VGA Input	1
HDMI Input	1
YPbPr/YCbCr Input	3(3×BNC)
RS232 Input(Optional)	1
Audio input	1
Audio output	1
Color system	PAL / NTSC / SECAM
OSD显示（on-screen menu display）
Menu language	Chinese/English/French/German/Italian/Spanish/Portuguese/Dutch/Polish
Key function	standard 7
OSD Power supply
Power supply	DC 12V，50/60Hz
Maximum power	35W-55W
Standby power	5W
