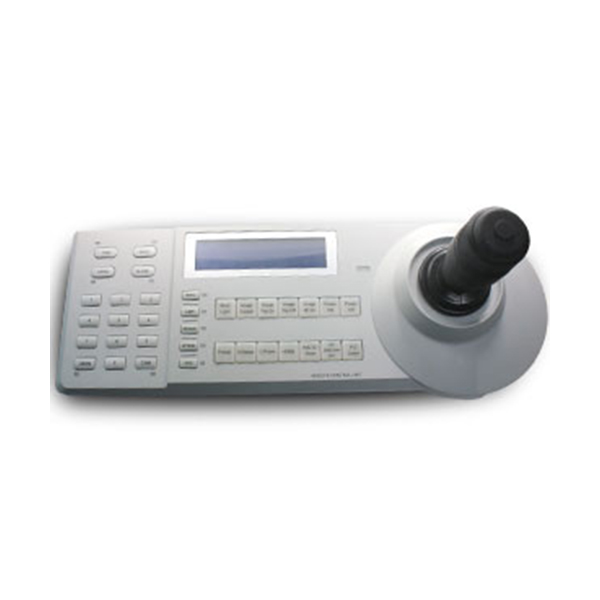

Intelligent control keyboard Application:
Control SONY video conferencing cameras and other ball machines.
Intelligent control keyboard Features and Functions:
1. Customized control keyboard for SONY video conference camera, fully compatible with VISCA protocol
2.LCD large screen graphic display

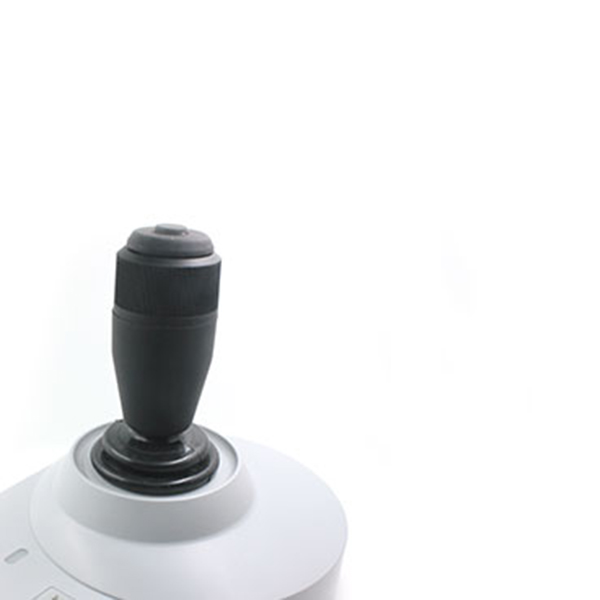

3. Four-dimensional light control lever
4. Multiple fastball control protocols
5. Multiple baud rates are optional
6. Full function ball machine control
7. Function key backlight: The backlight color of the "function key" controlled by DVR and CAM is different, which makes the operation more convenient.
8.DVR control: with screen switch, video recording, stop, playback, screen zoom in/out, image capture, fast forward, fast reverse, menu control, alarm set/withdrawal, alarm number control, etc.
9. Up to 16 operating users, 8-digit password protection.
Product Specs
| parameter | |
| Communication protocols | Pelco-D、Pelco-P、VISCA |
| Baud rate(bps) | 2400、4800、9600、19200 |
| Control address | can control a maximum of 255 fastballs, decoders, address codes from 0-254 |
| Communication mode | RS485 half-duplex, RS422 full-duplex |
| communication distance | RS485、RS422 about 1200m，RS232 about 10m |
| Control joystick | four-dimensional (control: up, down, left, right, multiply) |
| Display mode | LCD large screen display |
| Working power supply | DC9V |
| Power consumption | 5W |
| Operating temperature | 0℃ to 50℃ |
| Storage temperature | -20℃ to 70℃ |
| Dimensions(mm) | 390×145×160 |
| Weight(Kg) | 2.37 |
