VRS-MH8100 UAV aerial photography special digital HD movement 10x Zoom

VRS-MH8100 Product Details:

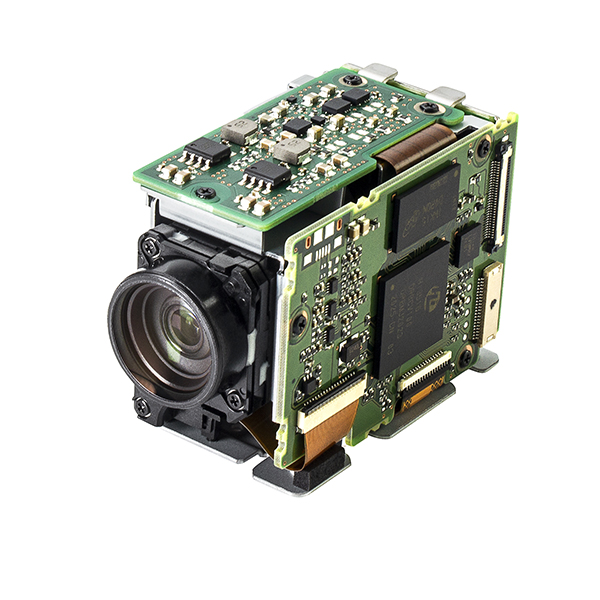

VRS-MH8100 is Volers’s HD surveillance camera movement, is customized for high-end surveillance industry HD camera/movement, UAV aerial camera preferred camera movement. The product uses 1/3 CMOS,10.5 times optical magnification, effective pixels of 4.08 million. The resolution of this series of cameras is 1080P60 full HD, the color is true, the image details are clearer, the overall image is excellent.

At the same time, it has the functions of fog penetration, anti-shake and wide dynamic, which can meet the real-time monitoring during the day and night, and ensure that the camera can be easily used in various field of view angles and lighting conditions. It can be widely used in UAV camera movement, education, medical care, banking, road monitoring, unmanned aerial vehicles, police cars, airports and safe cities and other fields of monitoring projects.





VRS-MH8100 Key Features:

VC Vibration Compensation

Wide dynamic range

Through the fog

Noise reduction (3D+2D)

Digital output

Privacy shelter

Slow response automatic exposure

Image effect switch (black and white)

The image is frozen

Flip (E-Flip)

Mirror (Mirror)

Temperature display

Headlines show

Camera mode display



VRS-MH8100 Product size:

VRS-MH8100 Product Specs:

Sensor Type	1/3.0-type CMOS
Effective pixels	4.08 million
Video output	HD:1080p/60, 1080p/50, 1080p/30,1080p/25, 1080i/60, 1080i/50,720p/60,720p/25, 720p/30, 720p/50 Digital:Y/Pb/Pr 4:2:2(LVDS)
Minimum Illumination	0.51x(1/30 sec,f1.8,50%)
Illumination range	100 lx ~100,000 lx
Gain	Auto  /  Manual
Electronic Shutter Speed	1/1  second to  1/10,000  second
Sync System	Internal
Exposure Compensation	-12db~+12db(13 steps)
BLC	ON / OFF
Lens	10.5x optical Zoom f=3.2mm (wide-angle end) to 33.6mm (distal) F1.8  to  F3.4
Gamma correction	Standard
Aperture Control	16 steps
White Balance	ATW1(Narrow), ATW1(Wide),One-tuch, Manual(B,R)
AE Control	Auto,Manual, Priority mode(Shutter/Aperture)
Zoom movement time	1.5 second
Horizontal definition	Center 800TV line above
Focusing System	Auto,Manual, One-push AF, ,Autofocus sensitivity
Zoom mode	Standard / Variable /Direct
Horizontal view angle(wide~tele)	62~6.5°
minimum photographic distance(wide~tele)	10mm~800mm
Camera control interface	VISCA protocol
Power Voltage	DC 8-12V
Power Consumption	About 3w below
Operating temperature/ Humidity	-5 ° C  to  60 ° C/20%  to  80%
Storage Temperature/Humidity	-40 ° C  to  60 ° C/20%  to  90%
Size（W x H x D）	31.9 x 41.5 x 58.4mm
Weight	About 77g
