Sony FCB camera block
These useful features are ideal for low vision systems. Now with this non-secure module option, you can choose the right camera to meet your specific needs. Each FCB camera offers flexibility and high image quality for a variety of applications, including document scanning.

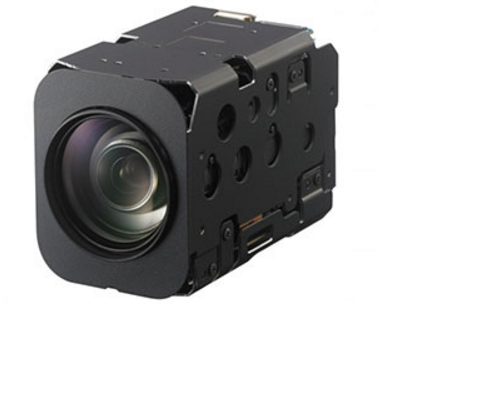

SONY FCB-IV7315 Key Features:
Capture crisp, clear Full-HD (1080/60p) images
The high-performance 1/2.8-type Exmor CMOS image sensor achieves superb Full-HD (1920 x 1080) picture quality, even in lowlight environments. Progressive scanning assures smoother pictures with reduced blur – ideal for capturing the detail in moving images.
Fast, bright lens with rapid 30x optical zoom

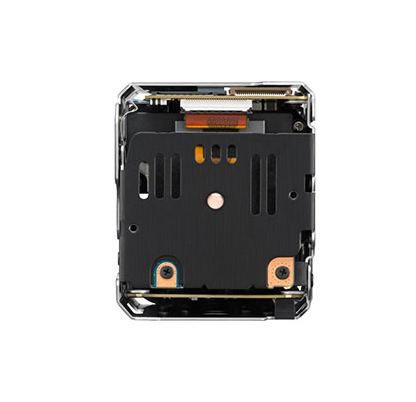

The FCB-EV7500 and FCB-EV5500 are equipped with a bright F1.6 maximum aperture and 30x optical zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups in security and surveillance applications.
Get a steadier picture with image stabilizer
The camera’s built-in image stabilizer function counters the eff ect of blurred, shaky images caused by low-frequency vibration. This is useful for outdoor surveillance and traffic monitoring applications, particularly if the camera is used on a bridge or mounting pole where it is subjected to wind or mechanical vibration.
StableZoom
Image stabilizer and optical/digital zoom are combined to enhance picture quality while maintaining the original horizontal angle of view. This ensures no compromise in image size, and reduces blurring.
2D/3D noise reduction
Advanced noise reduction technology filters noise from the image for clearer results, especially in low-light conditions. Noisereduction can be selected from five levels to suit a wide range of operating environments.
See more clearly with Visibility Enhancer
Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range.
Wide dynamic range
Wide-D image processing technology gives the ability to see clear, detailed images in high-contrast or backlit environments. All models now support an exceptionally wide 130 dB dynamic range, which is activated via VISCA command.*5
De-fog
The de-fog feature allows clearer and natural viewing in foggy or misty scenes. When this feature is activated, the camera detects the haze level and automatically applies the required effects. Depending on user requirements, the level of these effects can be adjusted via VISCA command.
HLC (High Light Compensation)
HLC technology helps to improve, for example, the visibility of license plates when bright headlights are shot under low-light conditions. The bright parts in the image are masked and compensated for automatically to achieve better visibility.
Clear vision around the clock with Day/Night
Benefit from optimized picture quality in changing light conditions – a frequent challenge in around-the-clock security operations. In high sensitivity mode the FCB-EV5300 can operate eff ectively in lighting levels as low as 0.05 lx (ICR off ).
Auto ICR (Auto IR-cut Filter Removal)
In low-light conditions, the camera automatically switches from Day to Nightmode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness. The spherical privacy zone masking feature enables areas of view to be selectively masked for privacy. Masked areas are automatically interlocked with the camera’s pan/tilt/zoom movements.
Choice of HD and SD output modes
Video signal outputs are available in a range of HD (digital and analog) and SD formats, reducing integration cost and complexity by avoiding the need for additional analog/ digital converters. Video output modes can be changed ‘on the fly’ during normal operation, without a hardware reboot of the camera.
One-cable connection for simpler integration
A single cable carries HD video signals plus VISCA communication and the power supply. Integration fl exibility is further supported by both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.
Wide range of features for versatile operation
Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement); Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/ slow shutter; and Title display/Camera mode display (English).
Product Specs
SONY FCB-IV7315 Product Specs:
| Product number | FCB-IV7315 | |
| Image Sensor | 1/2.8 ” Exmor R CMOS | |
| Image sensor ( effective number of pixels ) | About 2.38 million pixels | |
| signal system | 1080p/59.94,1080p/50, 1080p/60, 1080p/30, 1080p/29.97, 1080p/25, 1080i/59.94, 1080i/50, 1080i/60, 1080i/30 | |
| 720p/59.94, 720p/50, 720p/29.97, 720p/25, NTSC*1, PAL*1 | ||
| Minimum illumination (50%) | High sensitivity mode | Color : 0.1 lx (F1.6, automatic gain control on , 1/30 second ) |
| Normal mode | Color : 0.4 lx (F1.6, automatic gain control on , 1/30 second ) | |
| Recommended illumination | 100 lx to 100,000 lx | |
| Signal to noise ratio | 50 dB or more | |
| Gain | Auto / Manual (0 steps to 28 steps , +2 steps / total 15 steps) Maximum gain limit (6 steps to 28 steps , +2 steps / total 12 steps ) | |
| Shutter speed | 1/1 second to 1/10,000 second , 22 steps | |
| Synchronization system | Internal | |
| Exposure control | Auto, manual, priority mode ( shutter priority & aperture priority ), brightness, EV compensation, slow AE | |
| BLC | Have | |
| Aperture control | 16 steps | |
| White balance | Automatic, automatic tracking white balance, indoor, outdoor, outdoor automatic, sodium lamp ( fixed / automatic / outdoor automatic ), one-button, manual | |
| Lens | 20x optical zoom | |
| f= 4.7mm ( wide-angle end ) to 94.0mm (distal ) | ||
| F1.6 to F3.5 | ||
| Digital zoom | 12 times ( 240 times after using optical zoom ) | |
| Focusing system | Auto ( sensitivity : normal , low ), one-button auto focus, manual, interval auto focus, zoom trigger auto focus, focus compensation when ICR mode is on | |
| Viewing angle ( horizontal ) | 1080p mode | 59.5° ( wide-angle end ) to 3.3° ( distal ) |
| 720p mode | 59.5° ( wide-angle end ) to 3.3° ( distal ) | |
| SD mode | 44.6° ( wide-angle end ) to 2.5° ( distal ) | |
| Minimum object distance | 10 mm ( wide end ) to 1000 mm ( distal ) ( default : 300 mm) | |
| Automatic ICR | Have | |
| Wide-D *2 | No | |
| Visual enhancement | Have | |
| Noise reduction | Yes (6 steps) | |
| Progressive scan mode | Have | |
| Image stabilizer | No | |
| StableZoom | Have | |
| Digital output | Have | |
| Spherical privacy zone shadowing | Have | |
| Motion detection | Have | |
| Alarm function | no | |
| Slow AE response | Have | |
| Image effects | Electronic flip, negative, black and white, mirroring, color enhancement | |
| Image freeze | Have | |
| Slow shutter | Have | |
| Temperature reading | Have | |
| Title display | 20 characters / line, up to 11 lines | |
| Camera component mode display | Have | |
| Key switch control | no | |
| Camera operation switch | no | |
| Video output | HD | Analog: N/A Digital: Y/Cb/Cr 4:2:2, using LVDS ( signal format conforms to SMPTE 274/SMPTE 296. ) |
| SD | VBS | |
| Camera component control interface | VISCA (CMOS 5 V level ) baud rate : 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, stop bit : 1 bit | |
| Power requirement | 6.0 V to 12.0 V DC | |
| Power consumption | 2.4 W (zoom/focus inactive),2.9 W (zoom/focus active) | |
| Operating temperature | -5 ° C to 60 ° C | |
| Storage temperature | -20 ° C to 60 ° C | |
| Operating humidity | 20% to 80% | |
| Storage humidity | 20% to 95% | |
| Size ( width × height × depth ) | 50.0×60.0×87.9 mm | |
| weight | 270g |
