Sony FCB camera block

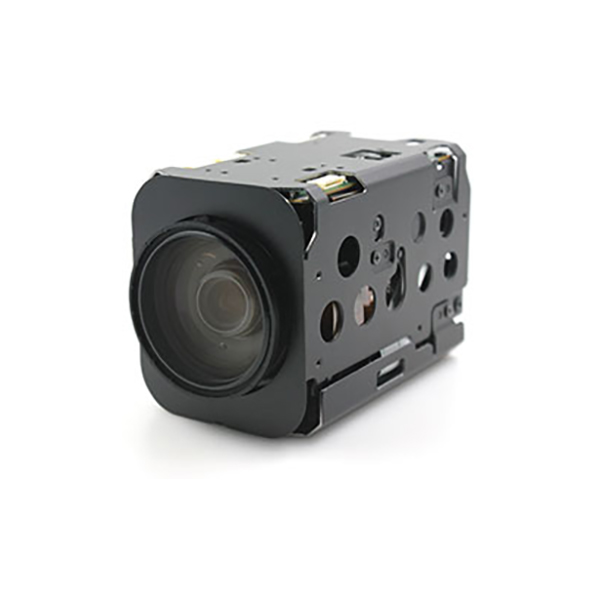

SONY FCB-EX2700P Product Details:
Sony fcb-ex2700p integrated camera parameters.Due to the use of super had CCD II ™ Image sensor and newly developed image processor, the new fcb-ex series camera provides excellent image quality with a horizontal resolution of 670 TV lines.
SONY FCB-EX2700P Key Feature:
Super HAD CCD II Image Sensor
The high performance Super HAD CCD II image sensor FCB-EX2700 and FCB-EX2700P achieve excellent sensitivity at low illumination levels as low as 0.6 lx*.
This sensor allows high quality images to be captured even in dark environments. In addition, it provides excellent horizontal resolution of the 670 TV line, enabling details to capture the scene.
* IRE 50%, AGC ON.
Progressive Scan
In progressive scan mode, the video signal is processed by progressive scan to obtain a sharp image without any flickering effect.Since web cameras typically have a back-end system based on progressive scan, the original image quality can be maintained without the need for interlaced to progressive scans.
Wide Dynamic Range and New Technology The
Wide Dynamic Range (Wide-D) feature allows for clear images to be captured under extreme lighting conditions.
• Auto mode
When shooting in high-contrast or low-contrast lighting, the camera monitors the difference in brightness within the image and automatically switches the Wide-D function on and off based on the visibility of the subject and background.
• Interlaced span and progressive wide mode
are available in two modes. The interlaced wide mode is ideal for high contrast lighting environments. The progressive wide D mode is suitable for low contrast environments.
The image stabilization
image stabilization function minimizes the appearance of a dithered image caused by low frequency vibration. This feature is suitable for outdoor monitoring and traffic monitoring applications.
StableZoomTM
StableZoom is a function that uses image stabilization according to the zoom ratio to correct and uses a combination of optical zoom and digital zoom to smoothly zoom in. In StableZoom mode, the
function starts naturally without a sudden change in the horizontal angle of view.
Visibility Enhancement The
powerful Visibility Enhancer dynamically and adaptively corrects tone curves on a pixel-by-pixel basis while continuously achieving higher visibility in contrast environments.
The defogging and
defogging function helps to improve the visibility of low contrast environments such as fog or smoke. This feature enhances and optimizes contrast in such situations.
Enhanced Noise Reduction
By combining 2D and 3D noise reduction, the camera offers a variety of noise reduction settings from Level 1 to Level 5 to allow you to choose the ideal level for different shooting conditions.
Advanced White Balance
For the white balance function, there are two different modes: Outdoor Auto Mode and Sodium Vapor Lamp Mode. These modes are designed to adapt to the natural light that changes outdoors and to change the sodium vapor lamp illumination.
The high quality digital output
camera is equipped with a digital interface (Y / Cb / Cr 4:2:2) comparable to the ITU-R BT656. With this digital interface, the quality of the camera’s video signal does not deteriorate. In addition, no external analog/digital converter is required between the camera and any other device.
The extended operating temperature camera operates over
a temperature range of -5 ° C to 60 ° C.
