| Sensor Type |
1/2.8-type CMOS |
| Auto ICR function |
Yes (adjustable threshold) |
| ICR function |
Y |
| Freeze |
Y |
| Auto Slow Shutter |
Y |
| Slow Shutter Function |
Y |
| Wide Dynamic Range |
Yes (Advanced 90dB) |
| Signal System |
1080p/29.97, HD: 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080p/30, 720p/59.94, 1080i/50, 1080i/59.94, 1080p/25, SD (NTSC-PAL), 720p/25, 720p/29.97, 720p/30, 720p/50, 720p/60 |
| Picture Elements |
2 |
| Horizontal Resolution |
0 |
| Lens |
x30 Zoom |
| Lens - Detail |
0 |
| Lens - f stops |
0 |
| Zoom Movement Speed |
0 |
| Digital Zoom |
0 |
| Angle of View H (WIDE) |
0 |
| Min Working Distance (WIDE) |
10 |
| Min Working Distance (tele) |
1200 |
| Image Stabilizer |
Y |
| Recomended Illumination |
100 |
| Minimum Illumination |
1 |
| Minimum Illumination 2 |
0 |
| Minimum Illumination 3 |
0 |
| AD |
0 |
| SN Ratio |
0 |
| Electronic Shutter Speed |
1 |
| White Balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, One-push, Manual, Sodium Vapor Lamp Fix/Auto/outdoor |
| Gain |
0 |
| AE Control |
Full Auto, Shutter Priority, Iris Priority, Manual, Bright, Exposure Compensation, Slow AE, Back Light Compensation, Slow Shutter - Auto/Manual |
| EV Compensation |
-10 |
| Flicker Compensation |
No |
| Noise Reduction |
6 steps (Adaptative 3DNR) |
| Spot AE |
Y |
| Focusing System |
Auto (Sensitivity: normal-low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Near Limit, Focus Compensation with IR lighting |
| Picture Effects |
Black & White, Neg. Art, E-Flip, Mirror, Color enhancement, Visibility enhancer, Black level, gamma, Sat/Hue Adjust, Defog (ON/OFF) |
| Character Generator |
Yes (20 characters/line, max. 11 lines) |
| Grid/Cross Disaply |
Yes |
| Privacy Zone Masking |
Yes (with Spherical Pan/tilt) |
| Privacy Zone masking Detail |
(24 mask, 8 on screen, 160x90 matrix) |
| Interlock with pan, tilt and zoom |
Yes (Spherical interlocking) |
| Alarm function |
Yes (Motion detection with 4 zones) |
| Aperture Control |
16 steps |
| Preset |
1 custom/power on preset, 16 positions |
| User Memory |
16 |
| Serial Interface |
VISCA protocol (TTL/CMOS), 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps Stop bit 1/2 bit |
| Visca Model ID |
467 |
| Video Output |
HD: Analog Component (Y/Pb/Pr), Digital (Y/Cb/Cr 4:2:2) Dual/single LVDS SD: VBS |
| Connector |
30 pin LVDS, 24-pin FFC |
| Metal Frame |
Y |
| Lens Diameter |
41 |
| Storage Temperature Humidity |
-20 |
| Operating temperature/ Humidity |
-5 |
| Power Consumption |
3 |
| Power Voltage |
6 |
| MTBF (excluding lens) |
0 |
| Weight |
260 |
| Width |
50 mm |
| Depth |
89 |
| Height |
60 mm |
| Order Quantity |
10 |

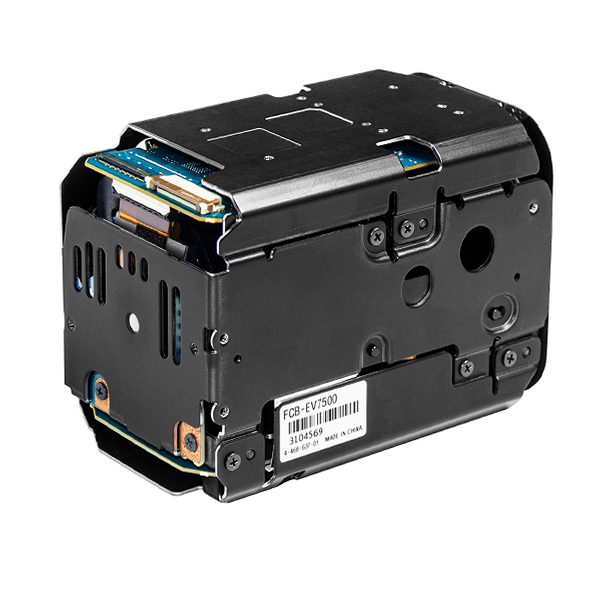

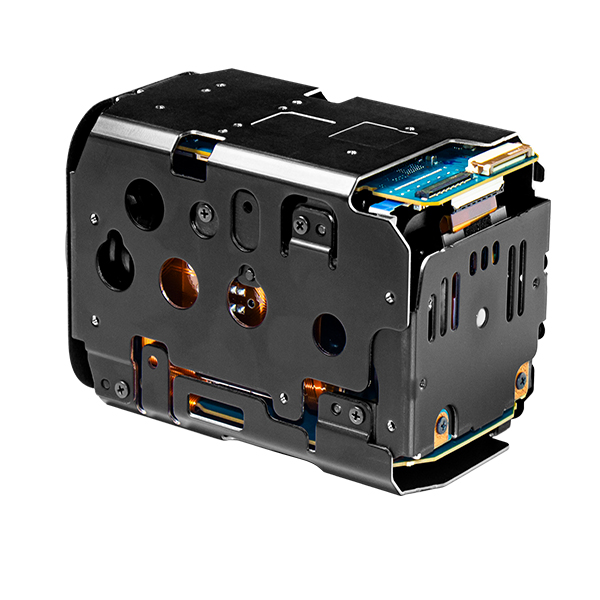

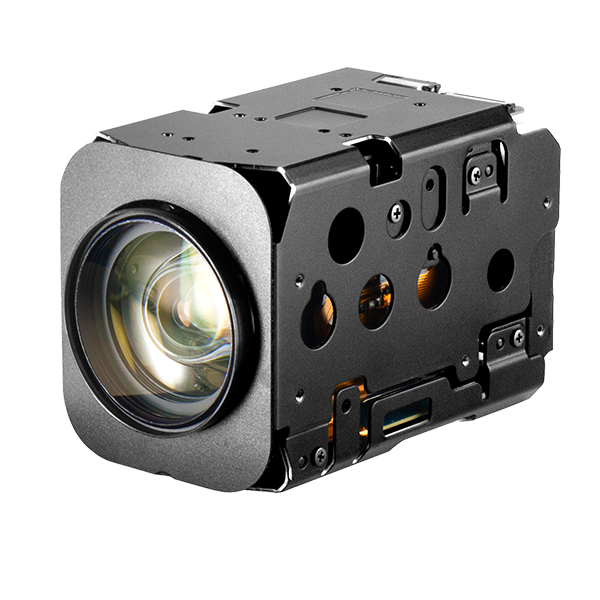

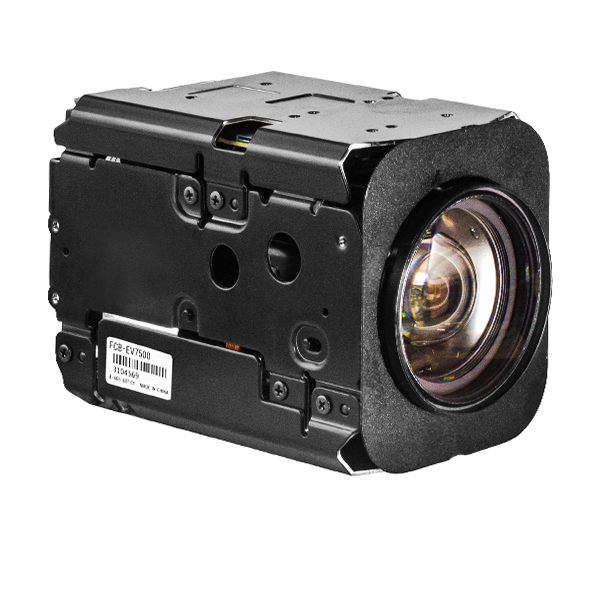

Sony FCB camera block
The difference between SONY FCB-EV7500 and SONY FCB-EV7520:
Image processor: FCB-CV7520 has the latest Exmor R CMOS processor with effective pixels of 2.13 million pixels, while FCB-CV7500 uses Exmor CMOS processor. The effective pixels are about 2.38 million pixels.
Minimum illumination: FCB-CV7520 can reach the star level, while the FCB-CV7500 does not.
High-definition video output mode: The FCB-CV7520 directly outputs only digital signals, while the FCB-CV7500 can directly output digital and analog signals.
Product weight: Both are the same size, but the FCB-CV7520 is 5g less than the FCB-CV7500.
Functionally: The FCB-CV7520 does not have a wide dynamic range function, while the FCB-CV7500 has it.
If you need a low-multiple camera core replacement, you can choose SONY FCB-EV7300 , the optical zoom is 20 times, and the image processor and functions are the same as FCB-CV7500.
FCB-EV7500 Applications:
Security Monitoring
Unmanned Aerial Vehicles (UAV's)
Intelligent Traffic
Remote Monitoring
Medical Applications
Inspection
