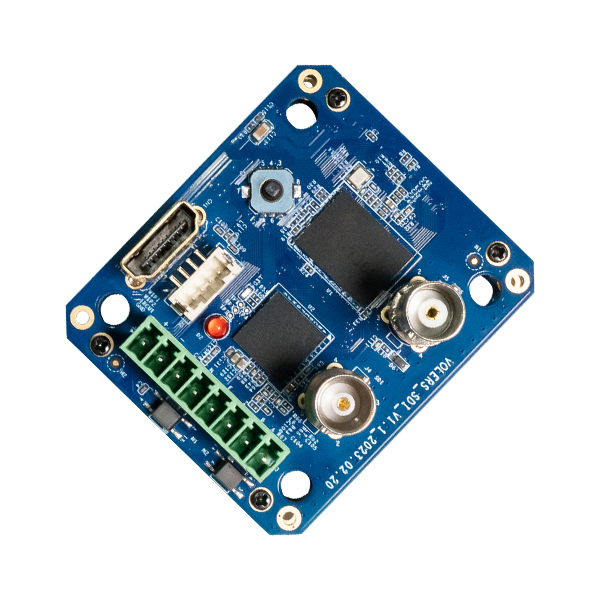

SDI/HDMI/CVBS 3-in-1 Interface board Product Details:
SDI/HDMI/CVBS 3-in-1 Interface board, designed and developed for SONY FCB digital high-definition movement module, connected to the code board through LVDS interface, synchronous output 3G-SDI, HDMI, CVBS video signal, no need for movement Make any settings that automatically identify HD signals for use in drones, video conferencing, medical equipment and image inspection equipment.
SDI/HDMI/CVBS 3-in-1 Interface board, designed and developed for SONY FCB digital high-definition movement module, connected to the code board through LVDS interface, synchronous output 3G-SDI, HDMI, CVBS video signal, no need for movement Make any settings, can automatically identify high-definition signals, support 485 control and Chinese and English OSD menu, support buttons to achieve zoom, focus and other functions, automatically identify PELCO-D / P protocol, unique Chinese and English menu, power-off memory, presets Bit, automatic cruise and other functions, compatible with the domestic movement of the SONY protocol. Used in the fields of drones, video conferencing, medical equipment and image detection equipment.
SDI/HDMI/CVBS 3-in-1 Interface board Key Features:
1. Access SONY FCB HD integrated movement module through LVDS line *1 , no need to make any settings for the movement, can automatically identify and display high-definition SDI signals.
2. Call up the OSD menu through the button, 485 control keyboard or decoder board to conveniently set the technical parameters of the movement module and save its parameter values.
3. This control panel can synchronously output SDI, HD-SDI and CVBS signals, which is convenient for debugging the position of the camera and setting technical parameters with the engineering treasure on the construction site.
4. can be connected to the infrared light, and there is an external synchronization interface of the infrared light, through the parameter setting of the movement, to avoid the phenomenon that the color can not be synchronized with the infrared light.
5, support RS485 control, automatic identification of PELCO-D, PELCO-P protocol, baud rate 2400bps, 4800bps, 9600bps, address 1–255.
6. Support the power-off memory function. When the movement parameter setting is saved, after the movement is powered off, it is not necessary to set the parameters of the movement again.
7. support 232 control, convenient communication with the computer or MCU (optional).
8. the unique video format change settings, when you can not see the image display, you can change the video format to 720P50, 1080I50, CVBS, you can also remotely change the video format through the 485 control keyboard.
9. unique 10 preset positions and automatic cruise function, cruise time is 5 to 999 seconds. (Optional) 10. Optional auxiliary function switch can be used to control other external devices such as wipers.
