Sony FCB camera block
- The MIPI signal format is CSI2, ensuring signal standardization.
- Accurately converts LVDS to MIPI signals to achieve efficient interface adaptation. With the above key features, the LVDS to MIPI interface board builds an efficient and stable bridge between the entire series of Sony FCB high-definition block cameras and devices supporting MIPI CSI2 interface. LVDS to MIPI Interface Board effectively solves the problem of signal format mismatch and meets the requirements for high-definition video image acquisition and transmission in different application scenarios.
- Hardware board only. No driver software included.
- Drivers available for separate purchase or self-development & optimization.
| Brand | Model | MIPI |
| Sony | FCB-EV9520L | 1080P60, 1080P50，1080P30，1080P25 720P60，720P50，720P30，720P25 |
| FCB-EV9500L | ||
| FCB-EV7520A | ||
| FCB-EV7520/CV7520 | ||
| FCB-EV7500/CV7500 | ||
| Volers | VRS-HD5101 | |
| VRS-HD5201 | ||
| VRS-HD5301 | ||
| VRS-HD5363 | ||
| VRS-HD5365 | ||
| Tamron | MP3010M-EV |
| Number | Pin Type | Pin definations |
| F1 | LVDS Socket | Camera LVDS interface connection |
| F2 | Molex Connector: Model 532610671, 6-pin socket with 1.25MM pitch | Interface definition see Table F2-1 |
| F3 | FPC Interface: 22-pin specification, 0.5MM pitch | Interface definition see Table F3-1 |
| Table: F2-1 | |||
| 1 | 9V-12V | 4 | TTL_TX |
| 2 | GND(9v-12v) | 5 | TTL_RX |
| 3 | GND | 6 | CAM_RST |
| Table: F3-1 | |||
| 1 | 3.3V | 12 | MIPI_TX2_N |
| 2 | I2C_SDA | 13 | GND |
| 3 | I2C_SCL | 14 | MIPI_CLK_P |
| 4 | GND | 15 | MIPI_CLK_N |
| 5 | NC | 16 | GND |
| 6 | NC | 17 | MIPI_TX1_P |
| 7 | GND | 18 | MIPI_TX1_N |
| 8 | MIPI_TX3_P | 19 | GND |
| 9 | MIPI_TX3_N | 20 | MIPI_TX0_P |
| 10 | GND | 21 | MIPI_TX0_N |
| 11 | MIPI_TX2_P | 22 | GND |
| Model No. | Communication Method |

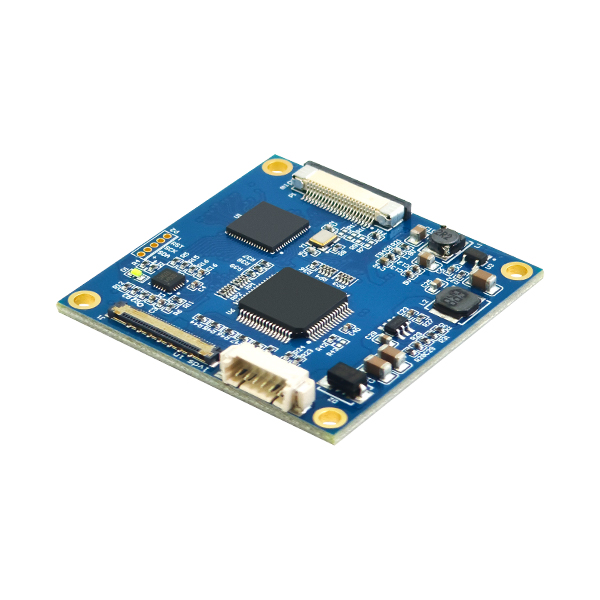

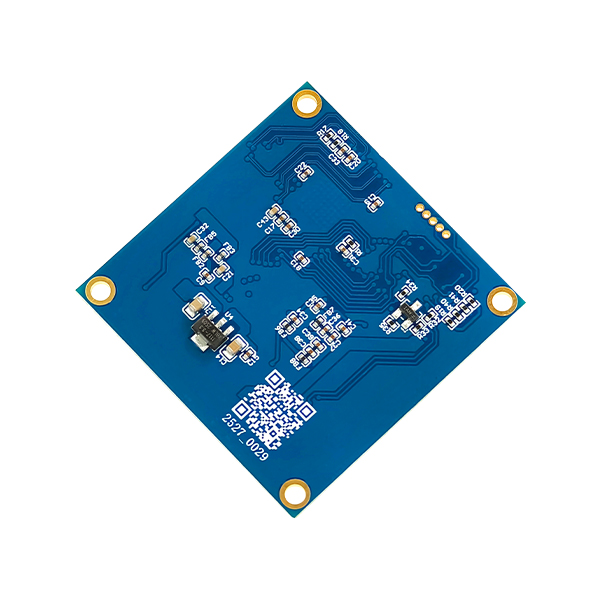

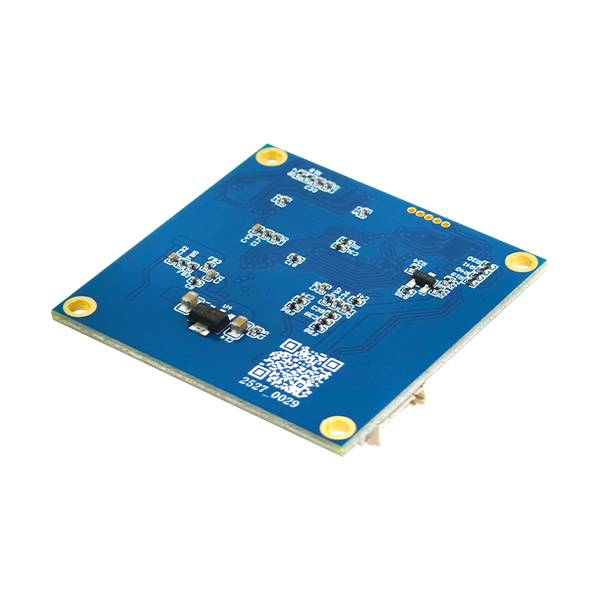

| PCB-HD305 | LVDS to MIPI conversion |
 |
 |
 |
 |

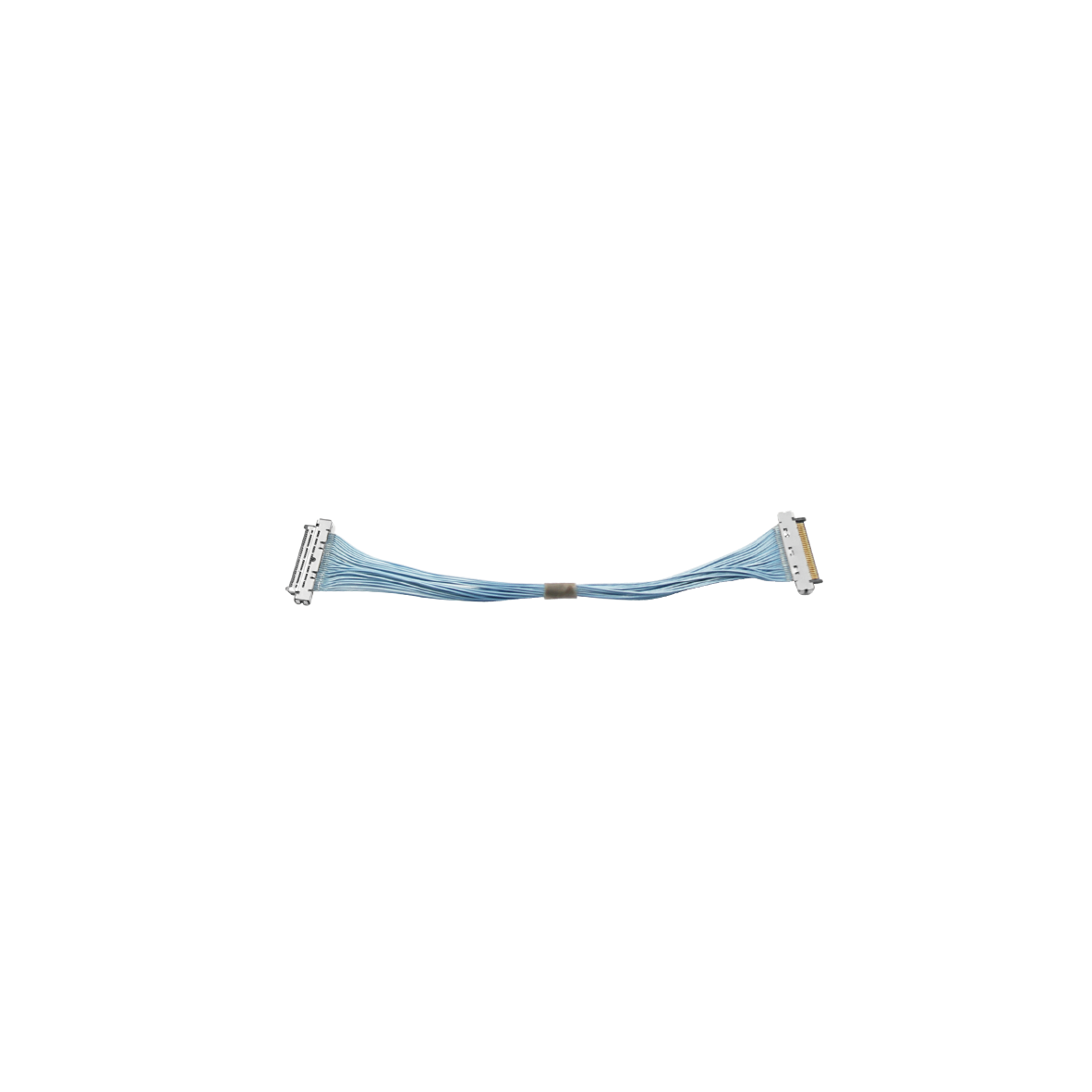

| LVDS Coaxial Cable (80MM) Customizable Length （Optional） | 6-Pin Terminal Wire (150MM)(Standard) | Screw/Copper pillar: M2*5 (Optional) | An iron plate (Size:50*50MM) (Optional) |
a. Interface board assembled with

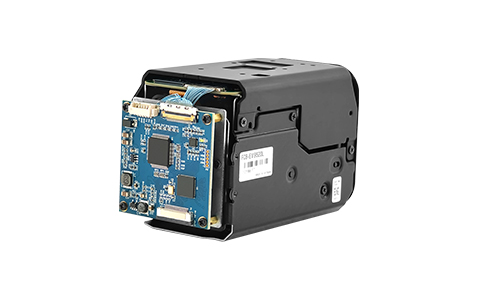

Sony Block camera FCB-EV9520L |
b. Interface board assembled with

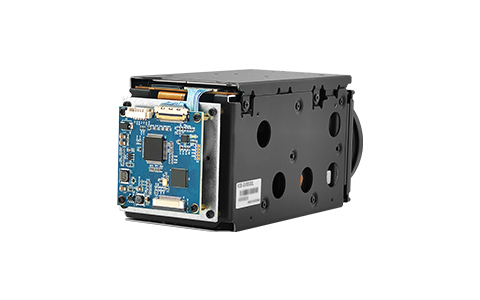

Sony Block camera FCB-EV9500L |
c. Interface board assembled with

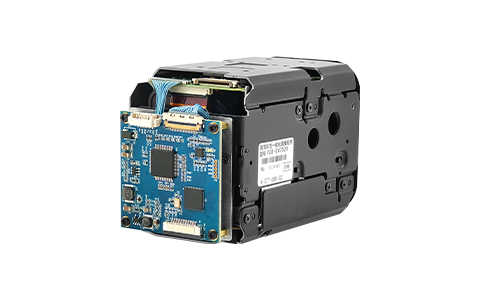

Sony Block camera FCB-EV7520 |
|
|
|
|
|

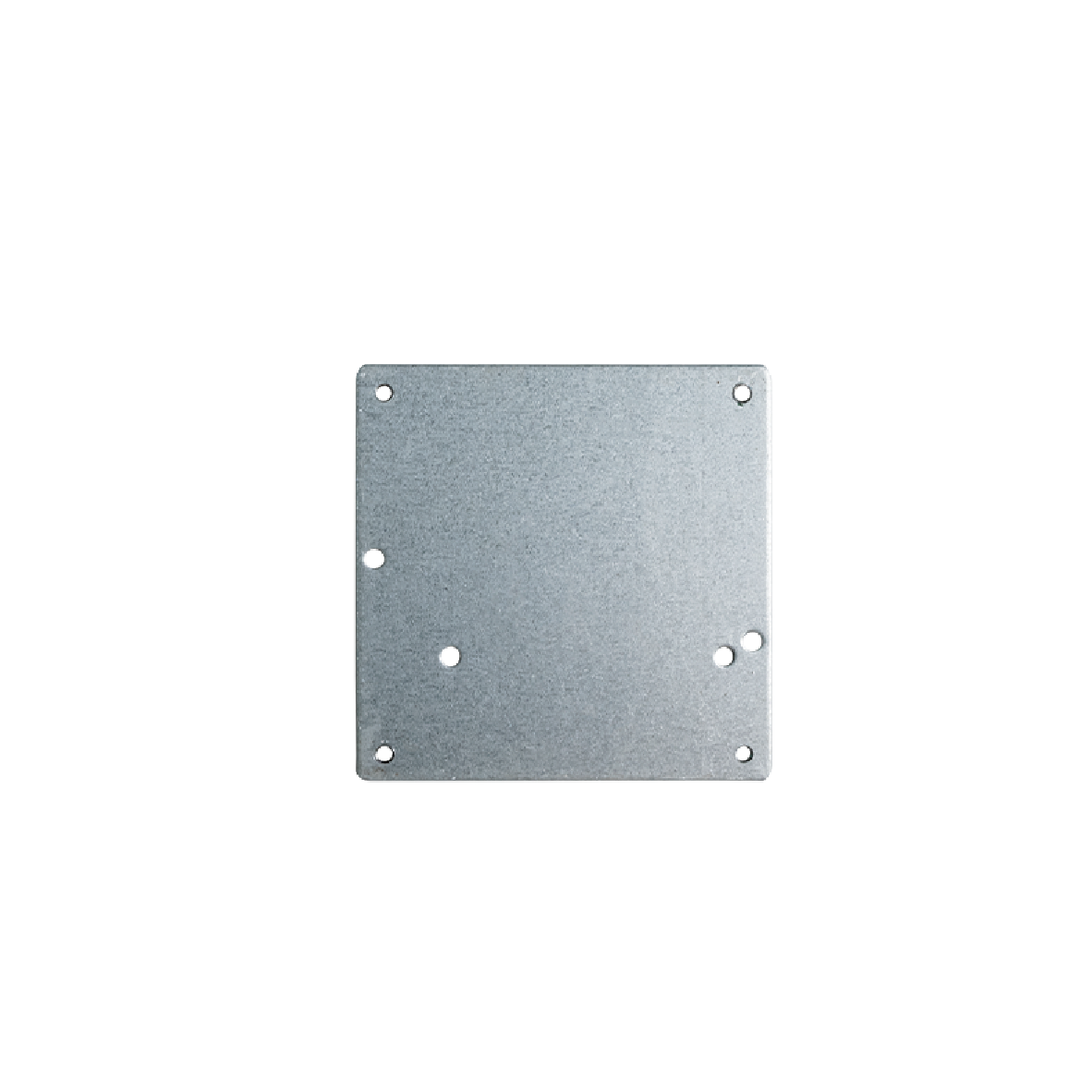

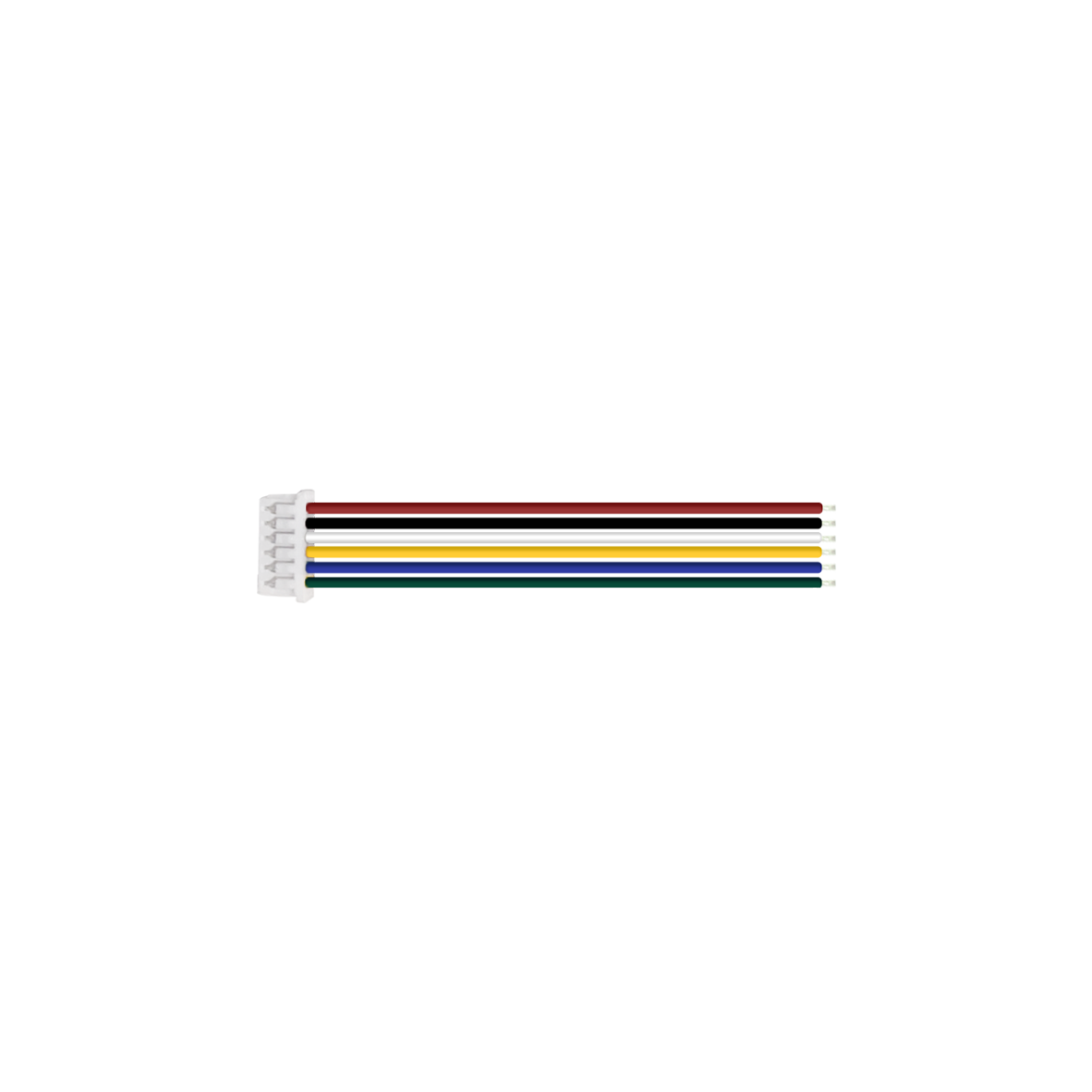

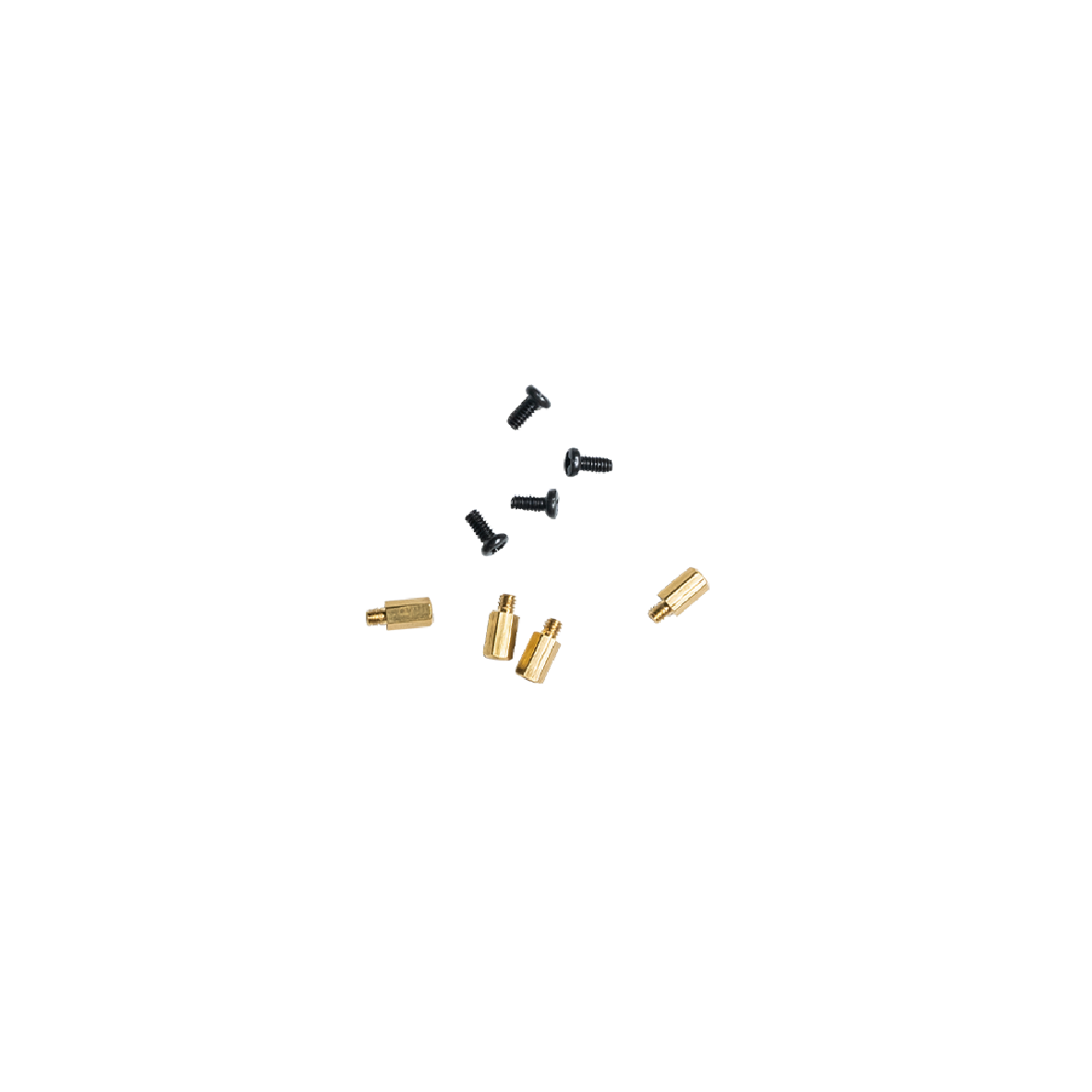

| Exemplified by FCB-EV9520L | 30Pin LVDS Coaxial Cable | 6pin terminal wire | Screw/Copper pillars | Iron Plate |
 |
 |
 |
 |

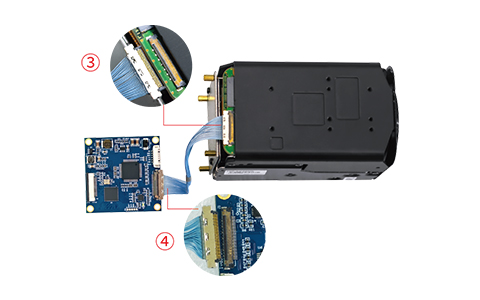

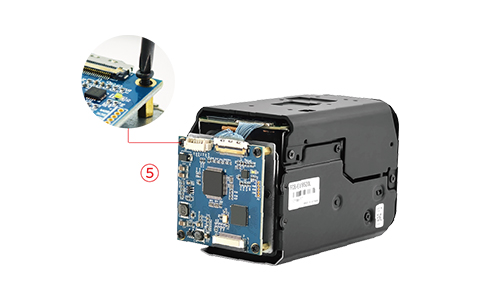

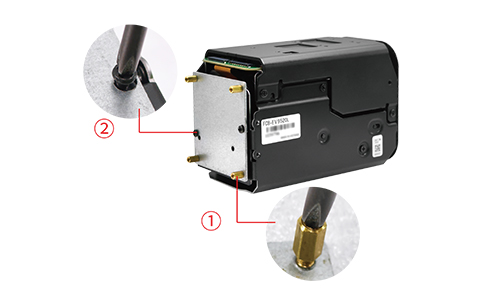

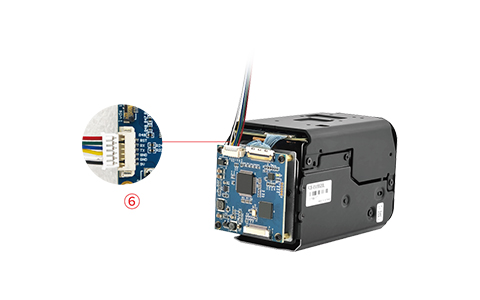

| StepⅠ: 1. Install four copper pillars onto the iron plate (as shown in Figure ① above). 2. Install the iron plate onto the rear of the camera and tighten the screws (as shown in Figure ② above). | StepⅡ: Connect one terminal of the 30-pin micro coaxial cable to the HD block camera (as shown in Figure ③ above).4. Connect the other terminal of the 30-pin micro coaxial cable to the interface board (as shown in Figure ④ above).Caution: Plug in the micro coaxial cable with gold-plated pins on camera facing up. Reverse insertion is strictly prohibited. | Step Ⅲ: 5. Install the interface board at the rear of the block camera and tighten the screws.(as shown in Figure ⑤ above). | Step Ⅳ: 6. Physically connect the LVDS to MIPI interface board with the 6-pin terminal wire (as shown in Figure ⑥ above). |
Product Specs
| Compatible cameras | Sony FCB High-Definition Series | Video Output Format | 1080P、720P |
| Connector | FPC 22Pin, 0.5MM Pitch | Video Output Interface | MIPI CSI-2 Version 1.00 |
| Operating Temperature | -5~60℃ (23~140℉) | Power Specification | DC12V 1A |
| Net Weight | Approx 8.5g | Product Dimensions | Approx 43*43*6.5mm |
