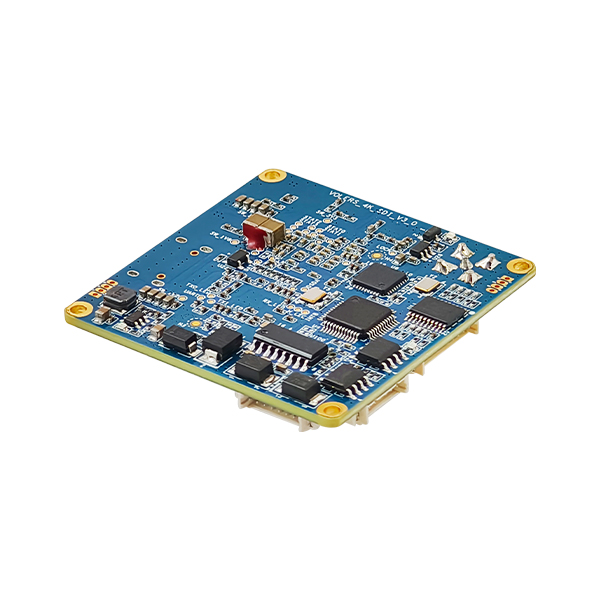

12G-SDI Interface Board Product Details:
12G-SDI Interface Board tailored for SONY 4K zoom cameras and Sony Visca command compatible zoom cameras, LVDS to 12G SDI output.

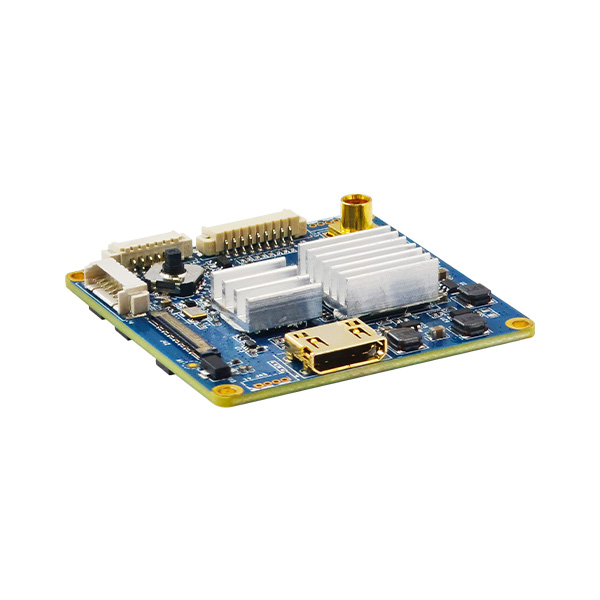

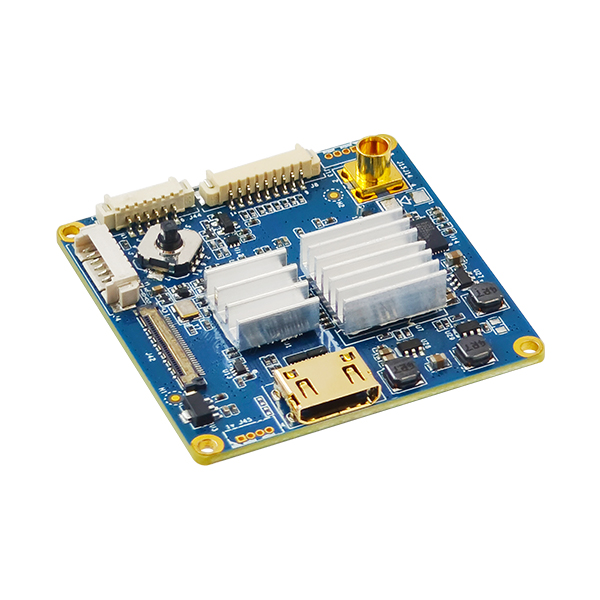

Designed for Sony FCB 4K UHD zoom camera blocks,the 12G-SDI interface board features the mini MCX RF interface andmini HDMI interface output.By connecting the interface board through LVDS cable,users can obtain a lossless video signal with 6G-SDI or 12-SDI UHD.
Support 485 control and OSD menu, allowing users to set up zoom,focus,gain,white balance and other functions using menu buttons.Automatically identifies the PELCO-D/P protocol,unique power-off memory,preset position,automatic touring and other functions.It is perfect for UAVs,videoconferences,medical equipment,imaging detection equipment,and other applications.
12G-SDI Interface Board main feature:
Directly connected to Sony FCB 4K ultra-high definition zoom camera blocks
The maximum output resolution can reach 8 mega pixels (3840*2160P60)
12G-SDl and HDMl simultaneous output
Support 232 control (RS232 or TTL232), support RS485 control
Support RS485 control keyboard and external button control
Support power-off memory function
GPlO pin functions can be customized according to customer requirements (additional software development fees are required)
Size: 48*48*5mm (excluding Mcx connector height)
Voltage:9-12V
Tailored for Sony 4K UHD zoom cameras
12G-SDl interface board is widely used in fields such as drone aerial photography, low vision equipment and video conferencing, medical equipment,etc.
