Sony FCB camera block

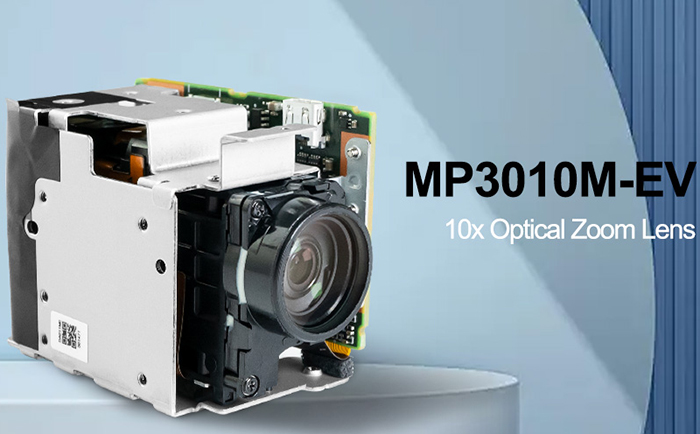

Tamron MP3010M-EV, with its 10x optical zoom and 16x digital zoom technology, has demonstrated significant advantages in fields such as unmanned aerial vehicles, medical care, and industrial inspection. Combining SONY STARVIS sensors, electronic image stabilization and lightweight design, the Tamron MP3010M-EV camera module has achieved a comprehensive breakthrough in performance and application.
1. Flexible focal length coverage, allowing you to control both near and far details at your fingertips
10x lossless zoom: The Tamron MP3010M-EV camera module supports stepless adjustment from wide-angle to telephoto, covering a field of view from 6.7° (wide-angle) to 59.2° (telephoto). It can clearly capture details such as broken wire strands and building cracks at a height of 100 meters, meeting the long-distance observation requirements of scenarios such as drone inspection and security monitoring. With a 16x digital zoom, the image can be magnified to obtain more detailed information.
Zoom stability: The Tamron MP3010M-EV camera module, combined with electronic image stabilization technology (including rotational vibration compensation), can maintain stable images even when the drone is flying at high speed or moving on complex terrains, avoiding the shaking problem caused by changes in focal length in traditional optical image stabilization.
2. SONY STARVIS sensor performs exceptionally well in low-light environments
High sensitivity imaging The Tamron MP3010M-EV camera module adopts a 1/2.8-inch SONY STARVIS CMOS sensor, with a low light intensity as low as 0.1lx (color mode), which is five times higher than the previous generation MP1010M-VC. It can still output clear images at night or in low-light conditions and supports the fog penetration algorithm to penetrate haze and smoke.
3. Lightweight design, unleashing the potential of equipment
Ultimate volume and weight: With a length of only 59mm and a weight of 70g, the Tamron MP3010M-EV camera module is over 10% lighter than similar products, significantly reducing the load on the drone and enhancing its endurance by 15% to 20%. At the same time, it reserves more space to accommodate multi-spectral sensors or mechanical arms.
Modular compatibility: The Tamron MP3010M-EV camera module supports multiple interface outputs such as LVDS, HDMI, and UVC, and can be flexibly connected to unmanned aerial vehicle flight control systems, medical imaging workstations, or industrial controllers to achieve simultaneous display of multiple devices.
4. Intelligent focusing and anti-shake, reliable guarantee for complex scenes
Fast and precise focusing: The Tamron MP3010M-EV camera module’s fast and precise focusing technology enables a smooth switching from wide-angle to telephoto quickly, avoiding focus drift during zooming. It is suitable for scenarios such as live surgery broadcasts and high-speed snapshots.
Electronic image stabilization upgrade: Supports vibration compensation in horizontal, vertical and rotational directions, and works in coordination with automatic exposure (AE) and automatic white balance (AWB) for optimization to ensure image stability during intense movement.
5. Industry-customized solutions
Unmanned aerial vehicle (UAV) inspection: The Tamron MP3010M-EV camera module, in combination with the 3G-SDI coding control board independently developed by Xuanzhan Technology, an officially authorized distributor of SONY (China), can achieve real-time and stable transmission of video signals, effectively enhancing the accuracy and work efficiency of UAV inspection.
Medical endoscopy: The Tamron MP3010M-EV camera module, paired with a USB3.0 video capture board (TYPE-C interface), enables the observation of minute lesions in 1080P60 high-definition quality, and supports remote surgical collaboration and live teaching broadcasts.
Recommendations for other application scenarios
Unmanned aerial vehicle (UAV) inspection: power line defect detection, oil and gas pipeline monitoring
Medical imaging: Live streaming of minimally invasive surgeries, endoscopic diagnosis
Industrial automation: Production line quality inspection, equipment fault identification
Sum up
The 10x optical zoom of the Tamron MP3010M-EV is not only an extension of the focal length, but also solves the pain points of “difficult clarity at long distances, easy shaking during movement, and performance limitations due to load” in scenarios such as drones and medical care through three major technological innovations: sensor upgrade, anti-shake optimization, and lightweight design. Its modular feature better supports rapid adaptation to the demands of different industries, making it a core component of the intelligent vision system.
