Sony FCB camera block

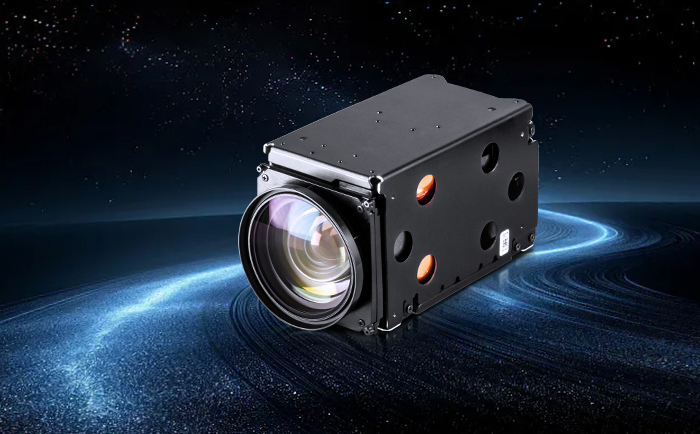

FCB-EW9500H, FCB-EV9500M and FCB-EV9500L are three auto focus camera modules in the same series from SONY, which not only have excellent image quality and stability, but also multi-dimensional stabilization in horizontal, vertical and center rotation They all performed well.
Image stabilization technology introduction
1. Overview of image stabilization technology
Unlike the electronic anti-shake of previous camera movements, the FCB-EW9500H, FCB-EV9500M and FCB-EV9500L autofocus camera modules all use advanced image anti-shake technology, including built-in gyroscope sensors, electronic stabilizer and jitter compensation space, as well as advanced image processing algorithms and processing chips. Together, these technologies can provide excellent anti-shake effects in a variety of complex environments with severe vibration, effectively reducing image blur and instability caused by camera shake or ambient vibration.
2. Multi-dimensional anti-shake principle
Gyroscope sensor: The built-in gyroscope sensor can detect the jitter data of FCB-EW9500H, FCB-EV9500M and FCB-EV9500L autofocus camera modules in real time, including multi-dimensional jitter information such as horizontal, vertical and center rotation. And transfer it to an image processing chip.
Electronic stabilizer: According to the jitter data detected by the gyroscope sensor, the electronic stabilizer will adjust the lens in real time to offset the impact of jitter on the image, ensuring the clarity and stability of the image.
Jitter compensation interval: Unlike previous camera movements, the FCB-EW9500H, FCB-EV9500M and FCB-EV9500L autofocus camera modules use the pixel count of the 4 megapixel image sensor (1/1.8 inch type) to provide a large jitter compensation range. The series of camera modules can effectively reduce the blur of the image under the severe jitter and twisting environment, and ensure the stability and clarity of the image.
FCB-EW9500H, FCB-EV9500M and FCB-EV9500L auto focus camera modules inherit the excellent anti-shake function of the previous camera movement in both horizontal and vertical dimensions, while further enhancing the anti-shake effect in the center rotation. The multi-dimensional and all-round super image stabilization function is realized.
3. Anti-shake mode

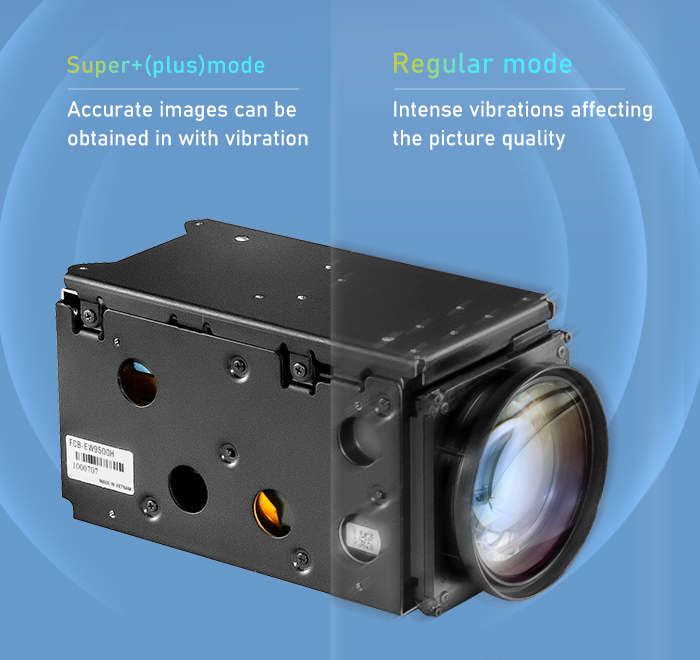

The FCB-EW9500H, FCB-EV9500M and FCB-EV9500L auto focus camera modules provide “Super” and “Super+” two anti-vibration modes to adapt to different shooting scenes and needs:
Super mode: In the general jitter environment, Super mode can effectively suppress jitter to ensure the clarity and stability of the image.
Super+ mode: Users can switch to Super+ mode when experiencing more intense jitter. In this mode, the camera will use a larger correction area to suppress and reduce stronger jitter, ensuring the stability of the video picture.
Application scenario
FCB-EW9500H, FCB-EV9500M, and FCB-EV9500L Autofocus camera modules feature super image stabilization for a variety of areas prone to violent shaking or twisting, including but not limited to:
Ship system: When sailing at sea, the shaking of the ship will have a great impact on the stability of the camera. The anti-shake function of the FCB-EW9500H, FCB-EV9500M and FCB-EV9500L autofocus camera modules ensures clear and stable images during the voyage.
ITS Intelligent Traffic: In the intelligent traffic monitoring system, the camera needs to run steadily for a long time to capture traffic information. The anti-shake function can reduce image blurring caused by factors such as vehicle vibration or wind.
Bridges: The monitoring of infrastructure such as Bridges requires cameras with a high degree of stability and clarity. The FCB-EW9500H, FCB-EV9500M and FCB-EV9500L auto focus camera modules can meet this demand and ensure the quality of the monitoring picture.
Drones: Drones are prone to jitter during flight due to factors such as airflow. The anti-shake function can ensure that the image captured by the drone is clear and stable.
On-board system: In the on-board monitoring system, the vehicle’s driving and changes in road conditions may cause the camera to shake violently. The super image stabilization function of the FCB-EW9500H, FCB-EV9500M and FCB-EV9500L autofocus camera modules improves the image quality of the on-board monitoring system.
Sum up
The super image stabilization technology of FCB-EW9500H, FCB-EV9500M and FCB-EV9500L auto focus camera modules has significant advantages and characteristics in handling severe shake or twist such as horizontal, vertical and center rotation, providing users with a reliable solution to capture clear and stable images in harsh environments.
